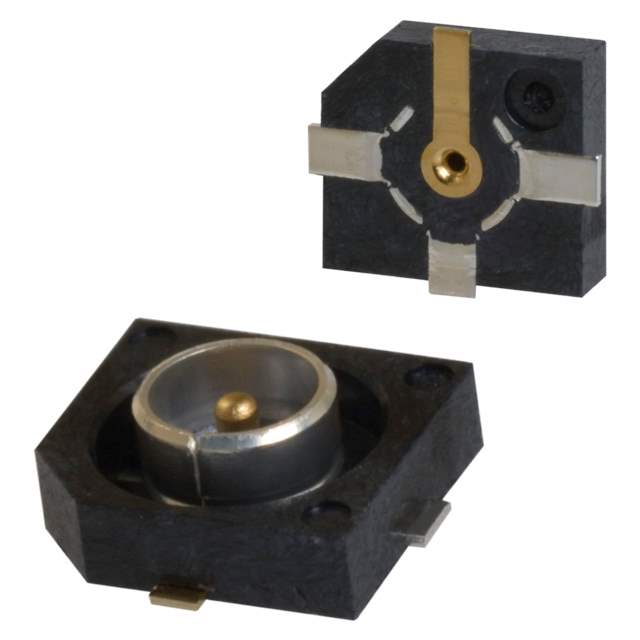

H.FL-R-SMT(10) Real Image
Same model may have multiple batches, images only for reference.

H.FL-R-SMT(10)

Part No H.FL-R-SMT(10)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN H.FL RCPT STR 50 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Style H.FL
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 3GHz
Housing Color Black
Body Material Phosphor Bronze
Body Finish Silver
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C to 90°C
Center Contact Material Brass
Mating Cycles 50
Win Source Part Number 204516-H.FL-R-SMT(10)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian H.FL-R-SMT(10) CAD Model

Description

The H.FL-R-SMT(10) by Hirose Electric Co Ltd is a solder receptacle connector with male pins. It has a medium popularity and a limited supply and demand status. This connector is designed to offer high performance and durability. It has a black housing color and a silver body finish. The H.FL-R-SMT(10) is an ideal choice for high-frequency applications such as wireless communication systems, antennas, and RF modules. It is a reliable and efficient connector that delivers excellent performance and quality.
