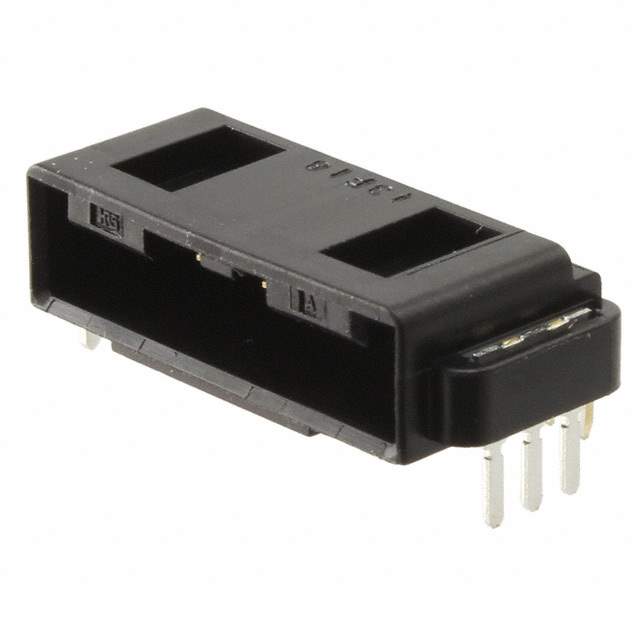

Same model may have multiple batches, images only for reference.

GT8E-10P-DS

Get a Quote

Part No	GT8E-10P-DS
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2MM / Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Datasheet	GT8E-10P-DS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Tray
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.276" (7.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Board Guide
Insulation Color	Black
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	H122070,GT8E-10P-DS-ND,758-0044-0-00
Standard Package	96
Win Source Part Number	1333040-GT8E-10P-DS
Ultra Librarian 3D Model	Ultra Librarian GT8E-10P-DS CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd GT8E-10P-DS header connector is a male pin connector with a 10-position layout.

Feature: Board Guide
Fastening Type: Latch Lock
Positions Loaded: All Positions
Contact Material: Brass
Contact Length: 3.00mm
Pitch: 0.079" (2.00mm)
Mating Contact Finish: Tin
Mounting: Through-Hole Mounted
Orientation: Right-Angle
Insulation Material: Polybutylene Terephthalate (PBT)
Shrouding: 4 Walls
Standard Package: 96
RoHS Compliant: Yes
