Same model may have multiple batches, images only for reference.

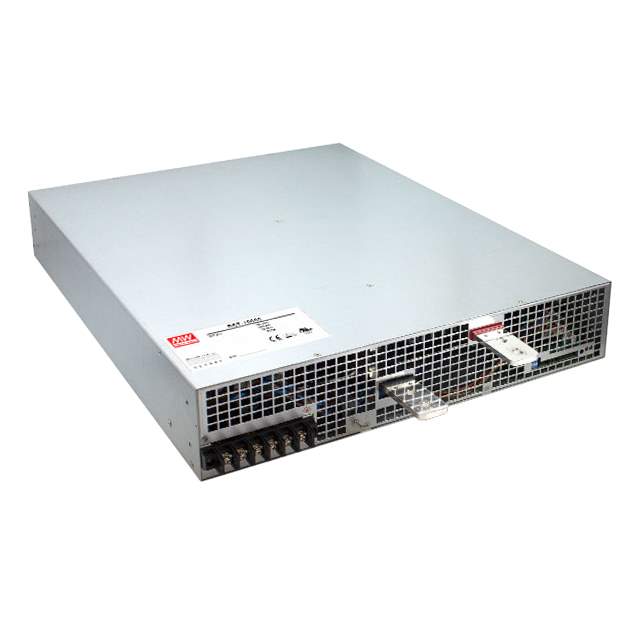

RST-10000-24 Real Image
Same model may have multiple batches, images only for reference.

RST-10000-24

Part No RST-10000-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 9600W / Enclosed AC DC Converters 1 Output 24V 196 ~ 305 VAC (3 Phase), 340 ~ 530 VAC (3 Phase) Input
Datasheet
RST-10000-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series RST-10000 (10000W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 196 ~ 305 VAC (3 Phase), 340 ~ 530 VAC (3 Phase)
Voltage - Output 1 24V
Current - Output 1 400 A
Power (Watts) 9600W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 89%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off
Mounting Type Chassis Mount
Dimension 21.26" L x 16.69" W x 3.29" H (540.0mm x 424.0mm x 83.5mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required No
Base Product Number RST-10000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9540
Other Names 1866-4296,RST-10000-24-ND
Standard Package 1
Win Source Part Number 1020056-RST-10000-24
Ultra Librarian 3D Model Ultra Librarian RST-10000-24 CAD Model

Description

The Win Source Part Number 1020056-RST-10000-24 is an enclosed AC DC converter from MEAN WELL USA Inc.

  • Power Rating: 9600W
  • Output: Adjustable with PFC and remote on/off features
  • Minimum Load: None
  • Efficiency: 89%
  • Voltage Input: 196 ~ 305 VAC (3 Phase), 340 ~ 530 VAC (3 Phase)
  • Voltage Isolation: 3 kV
  • Output Voltage: 24V
  • Current Output: 400 A
  • Dimension: 21.26" L x 16.69" W x 3.29" H (540.0mm x 424.0mm x 83.5mm)
  • Mounting: Chassis mounted
  • REACH: Unaffected
  • ECCN: EAR99
  • Approvals: CB, CE, cURus, and TUV
