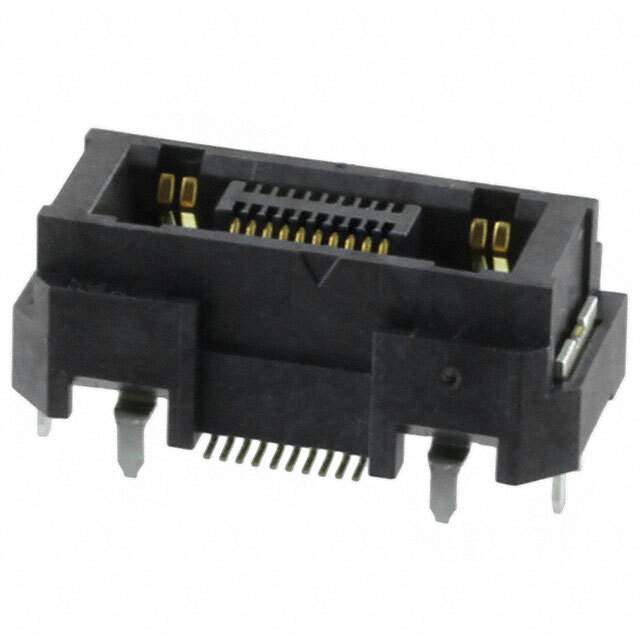

FX23-20S-0.5SV Real Image
Same model may have multiple batches, images only for reference.

FX23-20S-0.5SV

Part No FX23-20S-0.5SV
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 20POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 30000675-FX23-20S-0.5SV
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects -Rectangular Connectors -Arrays, Edge Type, Mezzanine (Board to Board)
Series FunctionMax™ FX23
Package Tray
Product Status Active
Product Status FX23
Connector Type Receptacle, Center Strip Contacts
Number of Positions 24 (20 + 4 Power)
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian FX23-20S-0.5SV CAD Model

Description

The Hirose Electric Co Ltd FX23 is a rectangular connector array.

  • Series: FunctionMax™
  • Number of Positions: 24 (20 + 4 power)
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Receptacle with center strip contacts
  • Mounting Type: Surface Mount
  • Package: Tray
  • Status: Active
