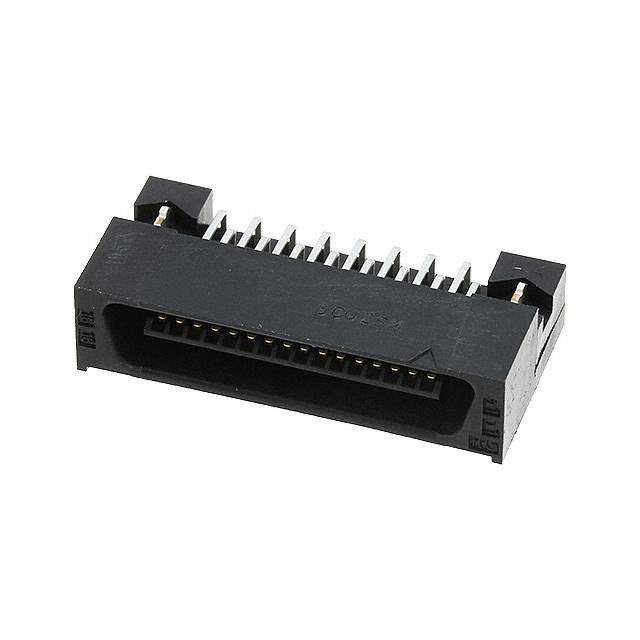

FX2-32P-1.27DSL(71) Real Image
Same model may have multiple batches, images only for reference.

FX2-32P-1.27DSL(71)

Part No FX2-32P-1.27DSL(71)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Description CONN BTB PLUG 32POS R/A SOLDER / 32 Position Plug Connector Board to Board Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>Centronics Connectors
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 32
Number of Rows 2
Mounting Through Hole, Right Angle
Termination Solder
Type Board to Board
Features Board Lock
Contact Finish Gold
Base Product Number FX2
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *FX2-32P-1.27DSL(71)-ND,572-2652-7-71,H123325,-FX2-32P-1.27DSL(71),FX2-32P-1.27DSL(71)-ND,*FX2-32P-1.27DSL(71)
Standard Package 80
Win Source Part Number 1332398-FX2-32P-1.27DSL(71)
Ultra Librarian 3D Model Ultra Librarian FX2-32P-1.27DSL(71) CAD Model

Description

The Hirose Electric Co Ltd Plug Centronics Connector has 32 positions and features board lock.

  • Positions: 32
  • Board Lock: Yes
  • Pitch: 1.27DSL(71)
  • Category: Connectors, Interconnects>D-Sub, D-Shaped Connectors>Centronics Connectors
  • Mounting Type: Through Hole, Right Angle
  • Packaging: Tray
  • Pieces per Package: 80
  • Contact Finish: Gold
  • Connector Style: Center Strip Contacts
  • Series: FX2
  • RoHS Compliant: Yes
