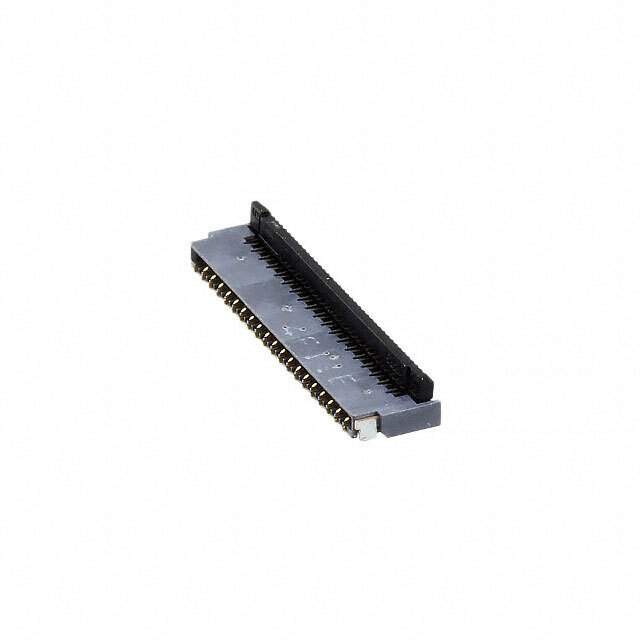

The Hirose Electric Co Ltd FH35C-39S-0.3SHW(50) is a surface mount, right angle connector with top and bottom contacts that has 39 positions and a pitch of 0.012" (0.30mm).

• Positions: 39
• Pitch: 0.012" (0.30mm)
• Termination: Solder
• Contact Finish: Gold with a thickness of 12μin (0.30μm)
• Voltage Rating: 30V
• Current Rating: 0.2A
• Height Above Board: 0.036" (0.90mm)
• Flat Flex Type: FPC
• FFC, FCB Thickness: 0.20mm
• Locking Feature: Flip lock and backlock
• Housing Material: Liquid crystal polymer (LCP)
• Actuator Material: Polyamide (PA), nylon
• Material Flammability Rating: UL94 V-0
• Housing Color: Gray
• Popularity: Medium
• Supply and Demand Status: Balanced
• Quantity per Package: 5k pieces
