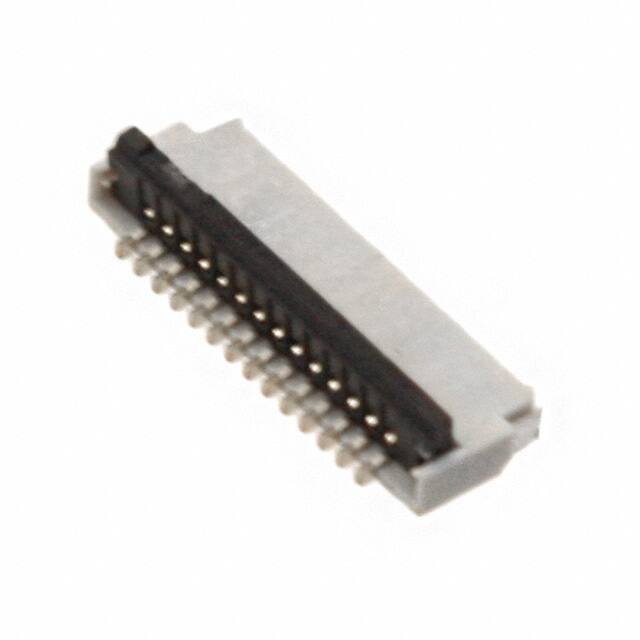

FH34S-14S-0.5SH(50)
Same model may have multiple batches, images only for reference.

FH34S-14S-0.5SH(50)

Part No FH34S-14S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 14POS 0.5MM R/A
Datasheet
FH34S-14S-0.5SH(50) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH34S
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 14
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 849693-FH34S-14S-0.5SH(50)
Ultra Librarian 3D Model Ultra Librarian FH34S-14S-0.5SH(50) CAD Model

Description

The 849693-FH34S-14S-0.5SH(50) is an obsolete FFC, FPC connector assembly from Hirose Electric Co Ltd. It is part of the FH34S series and has 14 positions with a pitch of 0.020" (0.50mm).

  • Series: FH34S
  • Number of Positions: 14
  • Pitch: 0.020" (0.50mm)
  • Insertion Force: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Height Above Board: 0.039" (1.00mm)
  • Mounting: Surface Mount, Right Angle
  • Contact Material: Phosphor Bronze
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Packaging: Tape & Reel
  • Standard Package: 5,000 pcs
  • Status: Obsolete
