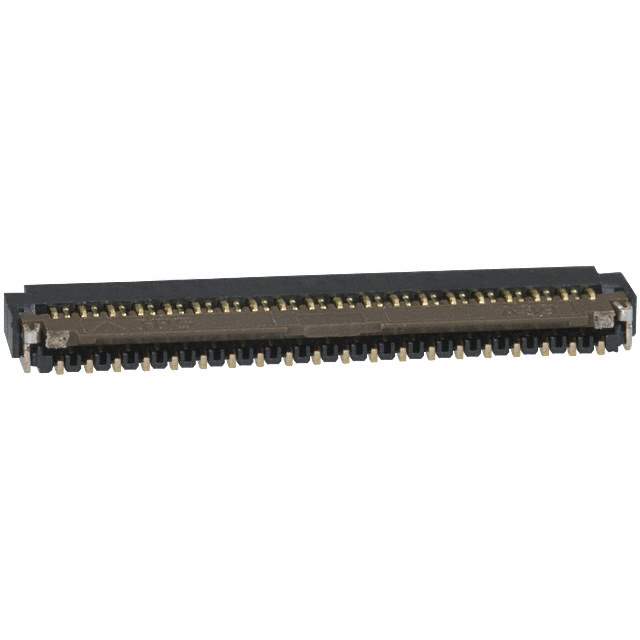

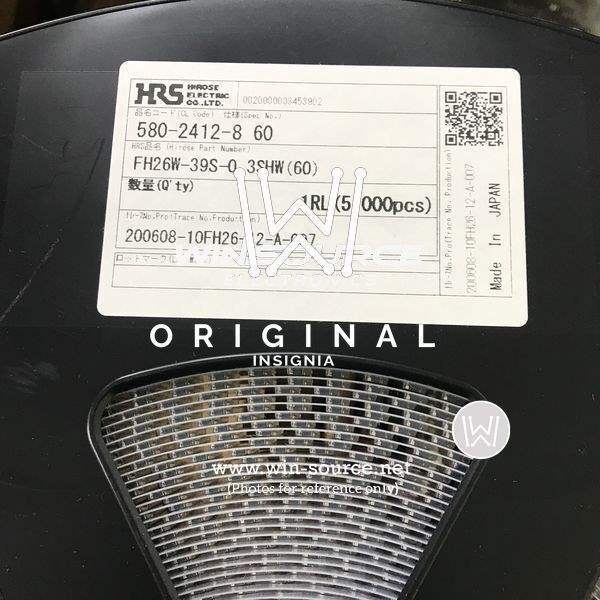

Same model may have multiple batches, images only for reference.

FH26W-39S-0.3SHW(60)

Name: FH26W-39S-0.3SHW(60)
Brand: Hirose Electric Co Ltd
SKU: 805095
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH26W-39S-0.3SHW(60)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC/FFC 39POS .3MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Packaging	Reel
Flat Flex Type	FPC
Mounting Style	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	39
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 HB
Current Rating (Amps)	0.2A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	10
Manufacturer Pack Quantity	5,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	805095-FH26W-39S-0.3SHW(60)
Ultra Librarian 3D Model	Ultra Librarian FH26W-39S-0.3SHW(60) CAD Model

Alternative Products

Description

The FH26W-39S-0.3SHW(60) is a surface mount, right angle connector from Hirose Electric Co Ltd.

Pitch: 0.012" (0.30mm)
Positions: 39
Features: Zero Insertion Force (ZIF)
Locking: Flip Lock
Temperature Range: -55°C to 85°C
Current Rating: 0.2A
