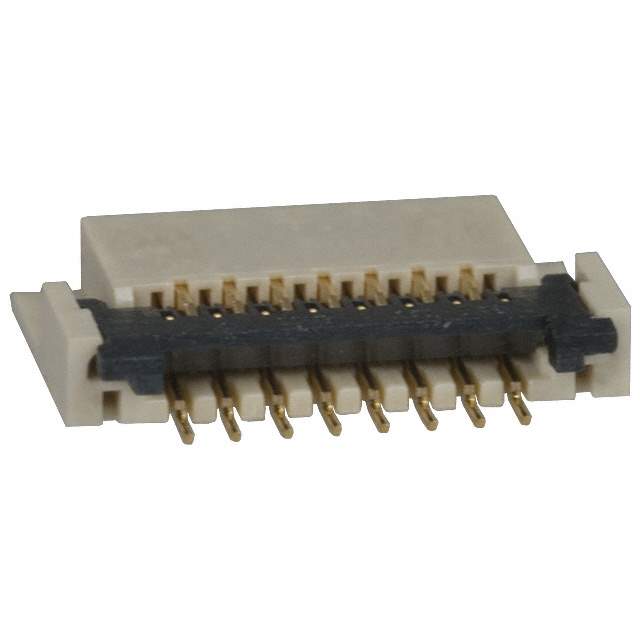

FH23-15S-0.3SHAW(05) Real Image
Same model may have multiple batches, images only for reference.

FH23-15S-0.3SHAW(05)

Part No FH23-15S-0.3SHAW(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FPC BOTTOM 15POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 15 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH23
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH23
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number *FH23-15S-0.3SHAW(05), HFQ515DKR, 586-1316-7-05, HFQ515CT, HFQ515TR, FH2315S03SHAW05
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871836-FH23-15S-0.3SHAW(05)
Ultra Librarian 3D Model Ultra Librarian FH23-15S-0.3SHAW(05) CAD Model

Description

The FH23-15S-0.3SHAW(05) connector from Hirose Electric Co Ltd is a 15 position FPC connector with bottom 0.012" (0.30mm) surface mount and right angle mounting.

  • Positions: 15
  • Connector Type: FPC
  • Mounting: Surface Mount, Right Angle
  • Pitch: 0.012" (0.30mm)
  • Operating Temperature: -55°C ~ 85°C
  • Series: FH23
  • Category: Connectors
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: Reel
  • Quantity per Package: 2500
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4051
  • Other Part Numbers: *FH23-15S-0.3SHAW(05), HFQ515DKR, 586-1316-7-05, HFQ515CT, HFQ515TR, FH2315S03SHAW05
  • Estimated Production Lead Time: 25 weeks
