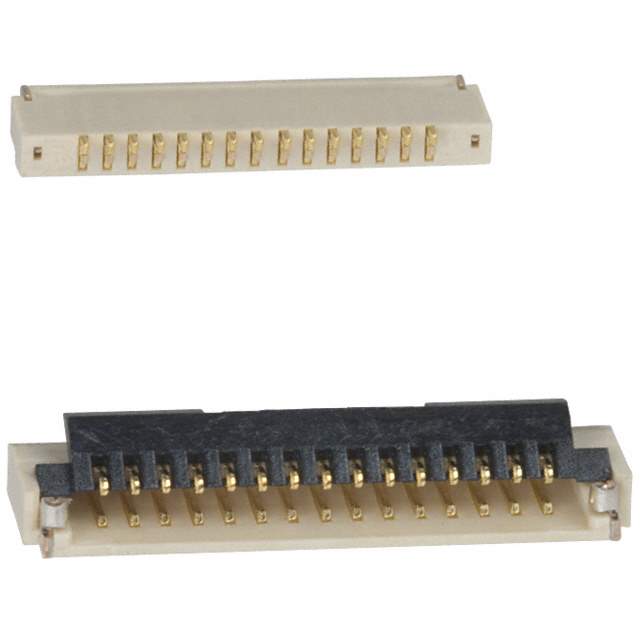

FH19SC-15S-0.5SH(09) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-15S-0.5SH(09)

Part No FH19SC-15S-0.5SH(09)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 15POS 0.50MM R/A / 15 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH19SC-15S-0.5SH(09) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH19SC
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number FH19
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names FH19SC-15S-0.5SH(09)-ND,H125831CT,H125831TR,580-0503-0-09,H125831DKR
Standard Package 5,000
Win Source Part Number 996167-FH19SC-15S-0.5SH(09)
Ultra Librarian 3D Model Ultra Librarian FH19SC-15S-0.5SH(09) CAD Model

Description

The FH19SC-15S-0.5SH(09) is a flat flexible connector from Hirose Electric Co Ltd. It is a part of the FH19SC series and is commonly used for interconnects.

  • Pitch: 0.020 inches
  • Contact Finish: Gold
  • Packaging: Tape and reel
  • Standard Package: 5,000
  • MSL Level: 1 (Unlimited)
