Same model may have multiple batches, images only for reference.

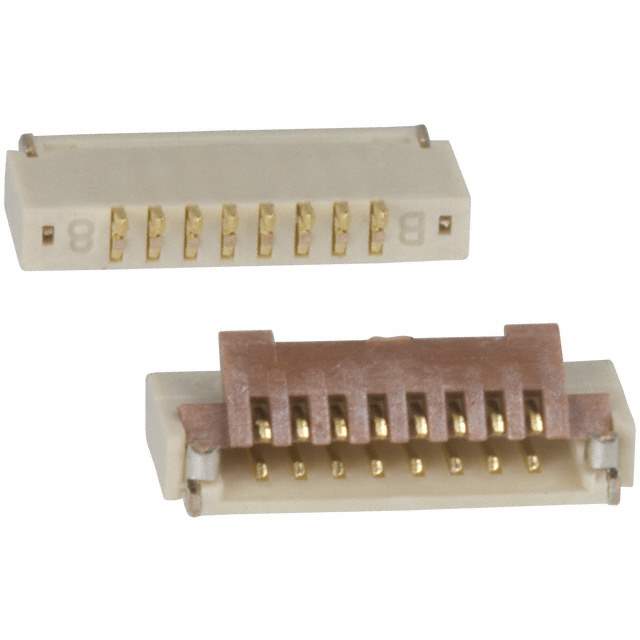

FH19C-8S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH19C-8S-0.5SH(05)

Part No FH19C-8S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 0.50MM R/A / 8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH19C-8S-0.5SH(05) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH19C
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names *FH19C-8S-0.5SH(05),FH19C8S05SH05,HFN408CT,HFN408TR,HFN408DKR
Standard Package 5,000
Win Source Part Number 1059105-FH19C-8S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH19C-8S-0.5SH(05) CAD Model

Description

The FH19C-8S-0.5SH(05) is a connector from the FH19C series with 8 positions and a pitch of 0.020" (0.50mm).

  • Product: FH19C-8S-0.5SH(05)
  • Series: FH19C
  • Positions: 8
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention and zero insertion force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Not specified
  • Packaging: Tape & reel
  • Standard Package: 5,000
  • Voltage Rating: 50V
  • Height Above Board: 0.035" (0.88mm)
  • Flat Flex Type: FFC, FPC
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.20mm
  • Locking Feature: Flip lock
  • Cable End Type: Tapered
  • Housing Material: Liquid crystal polymer (LCP)
  • Actuator Material: Liquid crystal polymer (LCP) and polyphenylene sulfide (PPS)
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4051
  • Alternative Parts: XF2M-0815-1A, XF2L-0835-1A, XF2U-0815-3A, FH19C-6S-0.5SH(05), FH12-8S-0.5SH(55), and FH34S-8S-0.5SH(50)
  • Status: Obsolete
  • Manufacturer: Hirose Electric Co Ltd
