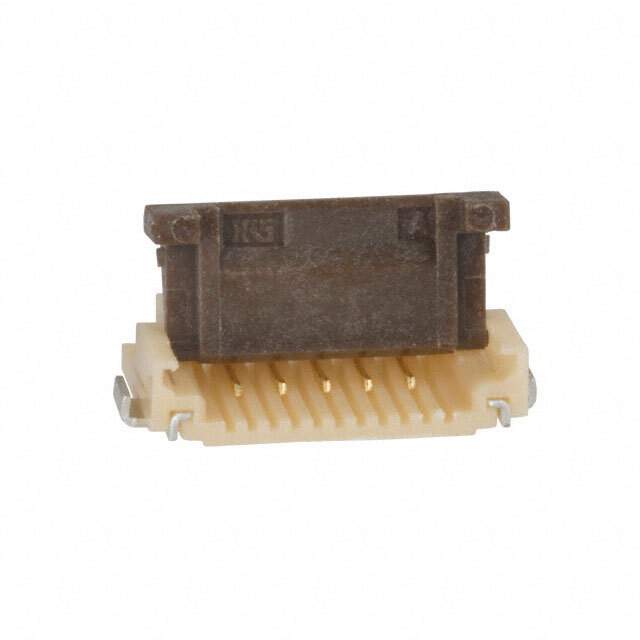

FH12-5S-1SH(55) Real Image
Same model may have multiple batches, images only for reference.

FH12-5S-1SH(55)

Part No FH12-5S-1SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 5POS 1.00MM R/A
Datasheet
FH12-5S-1SH(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH12
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number HFB105TR, HFB105CT, 586-0591-6-55, HFB105DKR, FH125S1SH55
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871800-FH12-5S-1SH(55)
Ultra Librarian 3D Model Ultra Librarian FH12-5S-1SH(55) CAD Model

Description

The FH12 series 871800-FH12-5S-1SH(55) FFC, FPC Connector Contacts is manufactured by Hirose Electric Co Ltd.

  • Surface Mount: bottom 0.039 inches (1.00mm)
  • Mount: right angle
  • Positions: 5
  • Series: FH12
  • Operating Temperature Range: between -40°C to 85°C
  • Package: reel-TR with a quantity of 2000 per package
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
  • Estimated Production Lead Time: 25 weeks
  • Other part numbers: HFB105TR, HFB105CT, 586-0591-6-55, HFB105DKR, FH125S1SH55
