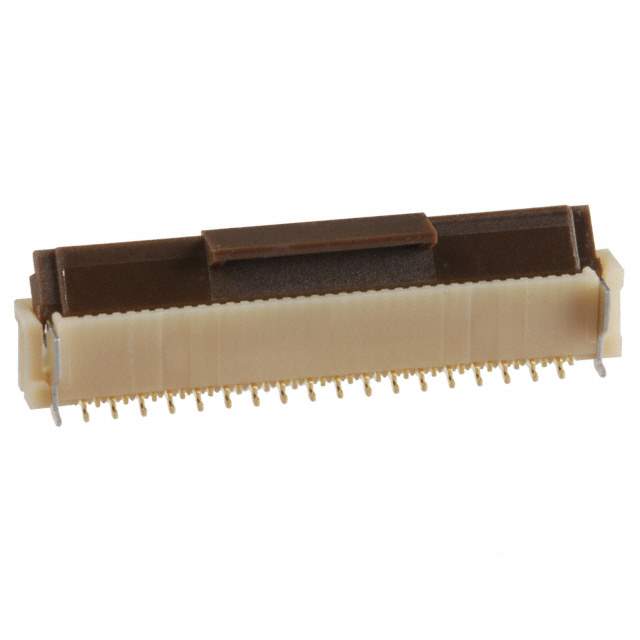

FH12-36S-0.5SVA(54)

Part No FH12-36S-0.5SVA(54)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 36POS 0.5MM SMD / 36 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
FH12-36S-0.5SVA(54) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 36
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness -
Housing Color -
Actuator Color -
Mating Cycles -
Base Product Number FH12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 1,000 pcs
Win Source Part Number 1382082-FH12-36S-0.5SVA(54)
Ultra Librarian 3D Model Ultra Librarian FH12-36S-0.5SVA(54) CAD Model

Description

The FH12-36S-0.5SVA(54) is a connector assembly from Hirose Electric Co Ltd and is part of the FH12 series.

  • Positions: 36
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.142" (3.60mm)
  • FFC/FPC Thickness: 0.30mm
  • Locking Feature: Flip Lock
  • Cable End Type: Straight
  • Housing Material: Polyamide (PA) and Nylon
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 85°C
