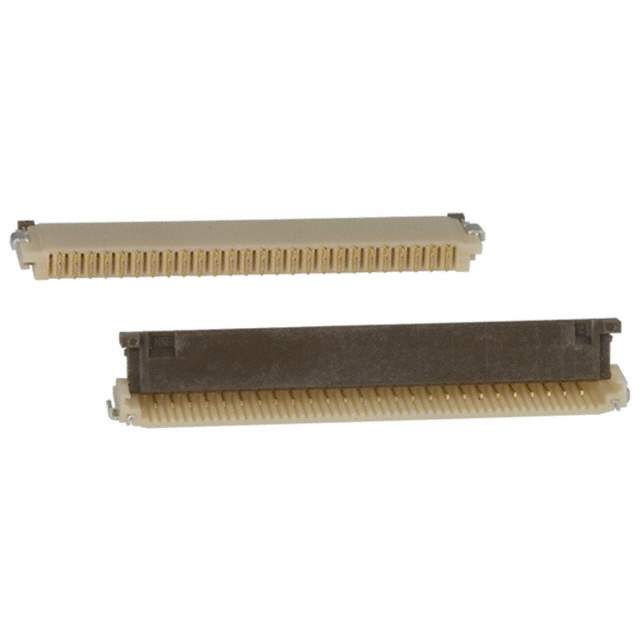

The FH12-26S-1SH(55) is a 26-position FFC/FPC connector from Hirose Electric Co Ltd. It is a surface-mount, right-angle connector with a pitch of 1.00mm. The connector features a flip-lock locking mechanism and a straight cable end type. The connector has a height above board of 2.00mm and a housing material of polyamide (PA), nylon. The contact material is phosphor bronze with a gold finish. The connector has a voltage rating of 50V and a current rating of 0.5A. It has a material flammability rating of UL94 V-0 and is suitable for use in a temperature range of -40°C to 85°C. The FH12-26S-1SH(55) has a standard package of 2,000 and a mating cycle of 20.
