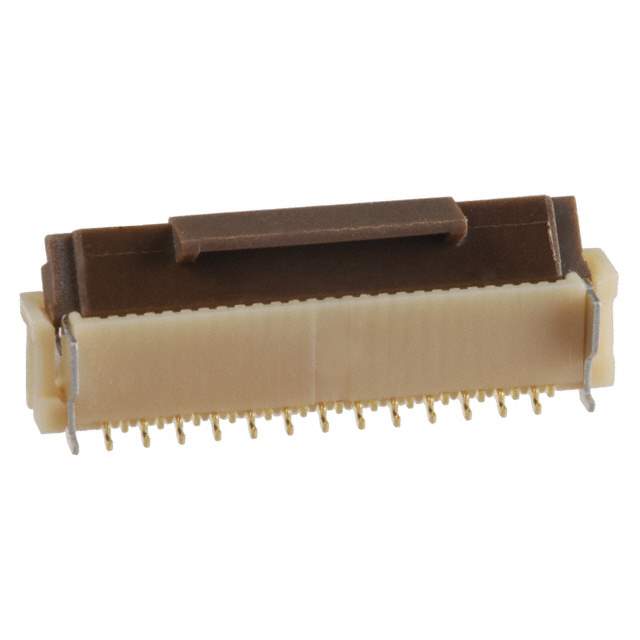

FH12-26S-0.5SVA(54) Real Image
Same model may have multiple batches, images only for reference.

FH12-26S-0.5SVA(54)

Part No FH12-26S-0.5SVA(54)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 26POS 0.50MM SMD / Conn FFC/FPC Connector F 26 POS 0.5mm Solder ST SMD T/R
Datasheet
FH12-26S-0.5SVA(54) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH12
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting SMD
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 26
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Win Source Part Number 774552-FH12-26S-0.5SVA(54)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name FH12
Introduction Date January 17, 2014
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian FH12-26S-0.5SVA(54) CAD Model

Description

The Hirose Electric Co Ltd FH12 Connector is a 26-position, SMD connector with a pitch of 0.020" (0.50mm).

  • Positions: 26
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder Retention
  • Locking Feature: Zero Insertion Force (ZIF), Flip Lock
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Category: Connectors, Interconnects
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: 1k pcs
  • Estimated EOL Date: 2030
