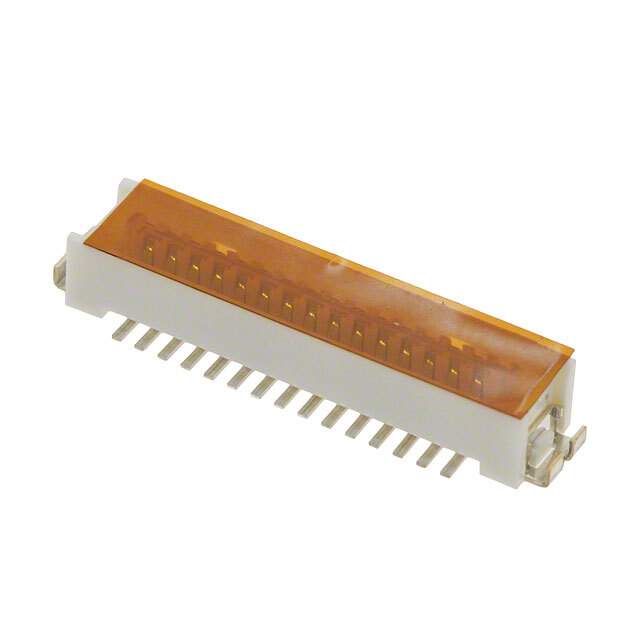

Same model may have multiple batches, images only for reference.

DF9B-31P-1V(32)

Name: DF9B-31P-1V(32)
Brand: Hirose Electric Co Ltd
SKU: 772596
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF9B-31P-1V(32)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 31POS 1MM SMD TIN / Conn Board to Board HDR 31 POS 1mm Solder ST Top Entry SMD T/R
Datasheet	DF9B-31P-1V(32) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	DF9
Packaging	Reel package
Connector Type	Header, Center Strip Contacts
Number of Positions	31
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting	SMD
Features	Solder Retention
Contact Finish	Tin
Contact Finish Thickness	39μin (1.00μm)
Mated Stacking Heights	4.3mm
Height Above Board	0.130" (3.30mm)
Win Source Part Number	772596-DF9B-31P-1V(32)
Popularity	Medium
Supply and Demand Status	Balance
Family Name	DF9
Introduction Date	November 12, 2001
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian DF9B-31P-1V(32) CAD Model

Alternative Products

Description

The DF9B-31P-1V(32) header connector from Hirose Electric Co Ltd is designed for use in a variety of applications, including power supplies, voltage regulators, and rectifiers.

Positions: 31
Pitch: 0.039" (1.00mm)
Features: Center strip contacts, Solder Retention
Contact Finish: Tin
Contact Finish Thickness: 39μin (1.00μm)
Mated Stacking Height: 4.3mm
Height Above Board: 0.130" (3.30mm)
Package: Reel, SMD Mounting
