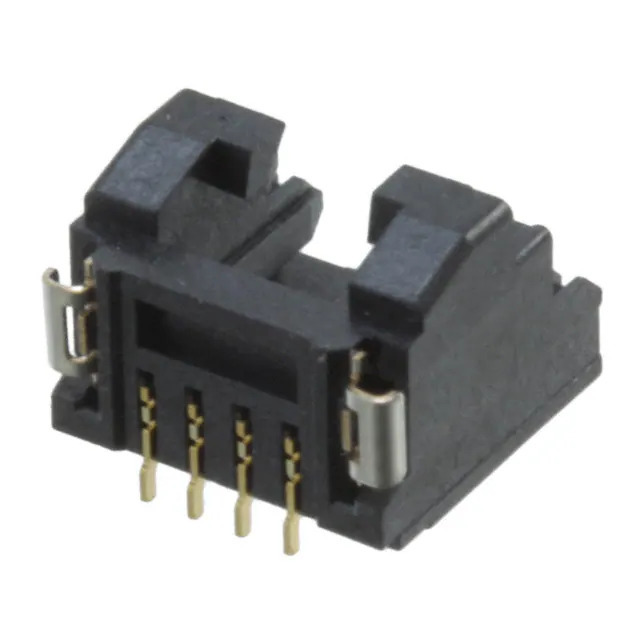

Same model may have multiple batches, images only for reference.

DF50A-4P-1V(51)

Name: DF50A-4P-1V(51)
Brand: Hirose Electric Co Ltd
SKU: 1365925
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF50A-4P-1V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 4POS 1MM
Datasheet	DF50A-4P-1V(51) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF50
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.039" (1.00mm)
Number of Positions	4
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.278" (7.06mm)
Contact Shape	-
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	-
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyester
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	100V
Mated Stacking Heights	7.35mm
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	DF50
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1365925-DF50A-4P-1V(51)
Ultra Librarian 3D Model	Ultra Librarian DF50A-4P-1V(51) CAD Model

Alternative Products

Description

The DF50A-4P-1V(51) is a male pin header connector designed for board to cable/wire applications. Hirose Electric Co Ltd manufactures this product and it is part of the DF50 series.

Series: DF50
Application: Board to Cable/Wire
Current Rating: 1A
Voltage Rating: 100V
MSL Level: 1 (Unlimited)
Packaging: Tape and Reel
