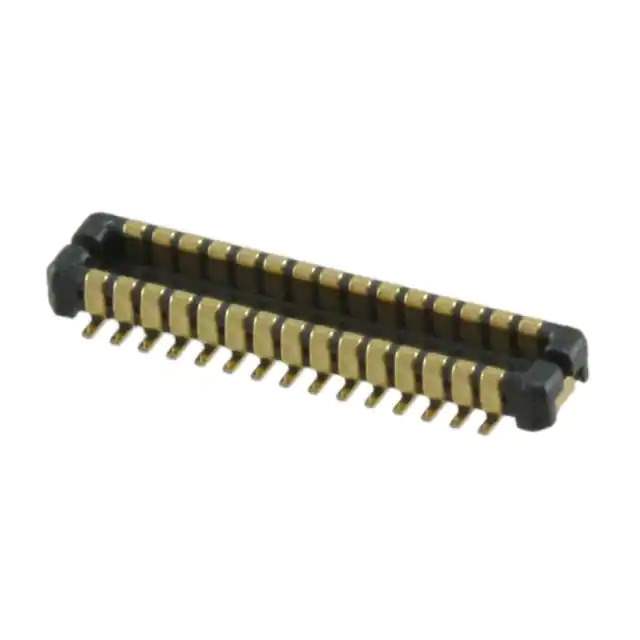

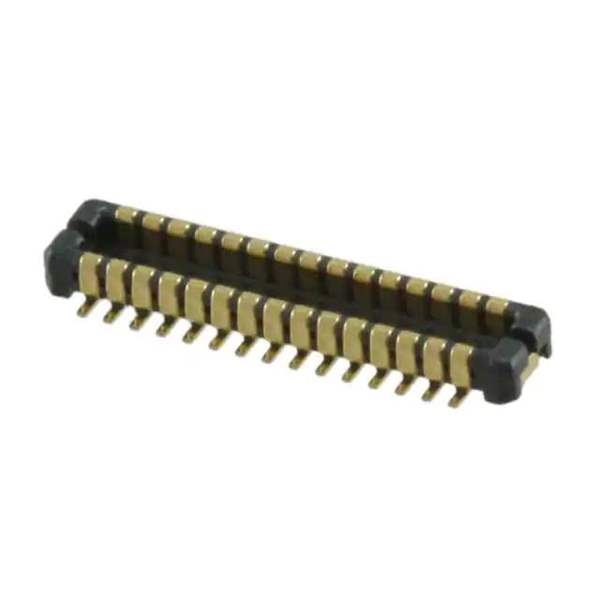

DF37B-30DP-0.4V(51) Real Image
Same model may have multiple batches, images only for reference.

DF37B-30DP-0.4V(51)

Part No DF37B-30DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
DF37B-30DP-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF37
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.98mm
Height Above Board 0.030" (0.75mm)
Base Product Number DF37B
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868526-DF37B-30DP-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian DF37B-30DP-0.4V(51) CAD Model

Description

The 868526-DF37B-30DP-0.4V(51) is a rectangular connector with arrays, edge type, and mezzanine (board-to-board) configuration. It is part of the DF37 series manufactured by Hirose Electric Co Ltd.

  • Positions: 30
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Contact Finish: Gold with a thickness of 2.00µin (0.051µm)
  • Package: Tape and reel with a standard package of 8,000 pieces
  • Mounting: Surface mount
  • Mated Stacking Height: 0.98mm
  • ECCN: EAR99
  • MSL Level: 1 (unlimited shelf life)
  • HTSUS Code: 8536.69.4040
  • Status: Active
