Same model may have multiple batches, images only for reference.

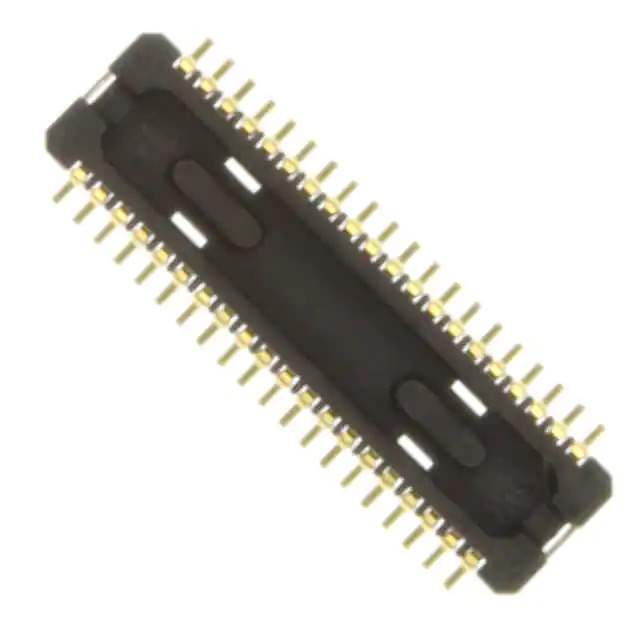

DF30FB-40DP-0.4V(81) Real Image
Same model may have multiple batches, images only for reference.

DF30FB-40DP-0.4V(81)

Part No DF30FB-40DP-0.4V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 40POS SMD GOLD / 40 Position Connector Header, Center Strip Contacts Surface Mount Gold
Datasheet
DF30FB-40DP-0.4V(81) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF30
Package Tape & Reel
Product Status Obsolete
Connector Type Header, Center Strip Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.9mm
Height Above Board 0.035" (0.88mm)
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868494-DF30FB-40DP-0.4V(81)
Ultra Librarian 3D Model Ultra Librarian DF30FB-40DP-0.4V(81) CAD Model

Description

The 868494-DF30FB-40DP-0.4V(81) is a mezzanine connector from Hirose Electric Co Ltd.

  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine
  • Series: DF30
  • Positions: 40
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder retention
  • Connector Type: Header, center strip contacts
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00µin (0.051µm)
  • Package: Tape & Reel
  • Standard Package: 5,000 pieces
  • MSL Level: 1
  • HTSUS Code: 8536.69.4040
