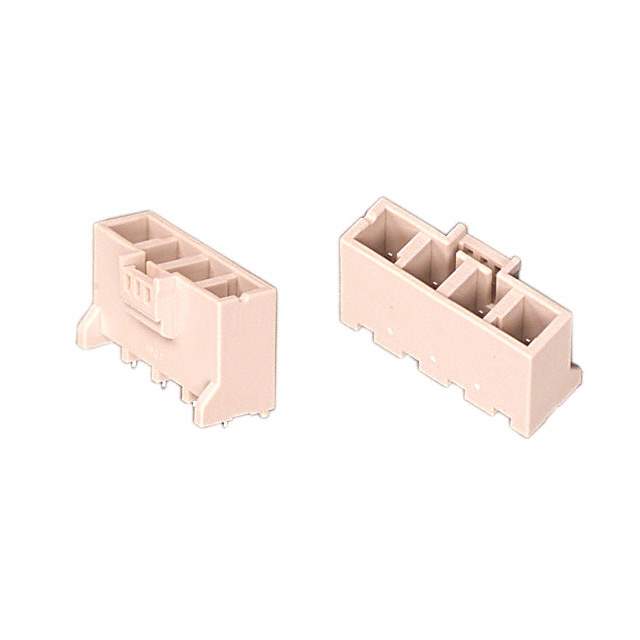

Same model may have multiple batches, images only for reference.

DF22-4P-7.92DSA

Get a Quote

Part No	DF22-4P-7.92DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 7.92MM / Connector Header Through Hole 4 position 0.312" (7.92mm)
Datasheet	DF22-4P-7.92DSA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF22
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.354" (9.00mm)
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.713" (18.10mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA) , Nylon
Features	Board Guide
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	22A
Voltage Rating	1000V
Mated Stacking Heights	25.7mm, 28.7mm
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350615-DF22-4P-7.92DSA
Ultra Librarian 3D Model	Ultra Librarian DF22-4P-7.92DSA CAD Model

Alternative Products

Description

The EnerBee™ DF22 header connector by Hirose Electric Co Ltd is a male pin type connector with 4 positions.

Positions: 4
Connector Type: Header, Male Pin
Features: Board Guide
Fastening Type: Latch Holder
Contact Material: Copper Alloy
Contact Finish: Tin
Current Rating: 22A
Voltage Rating: 1000V
Pitch - Mating: 0.312" (7.92mm)
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Insulation Material: Polyamide (PA), Nylon
Operating Temperature: -35°C to 85°C
Product Status: Obsolete
RoHS Status: RoHS Non-Compliant
