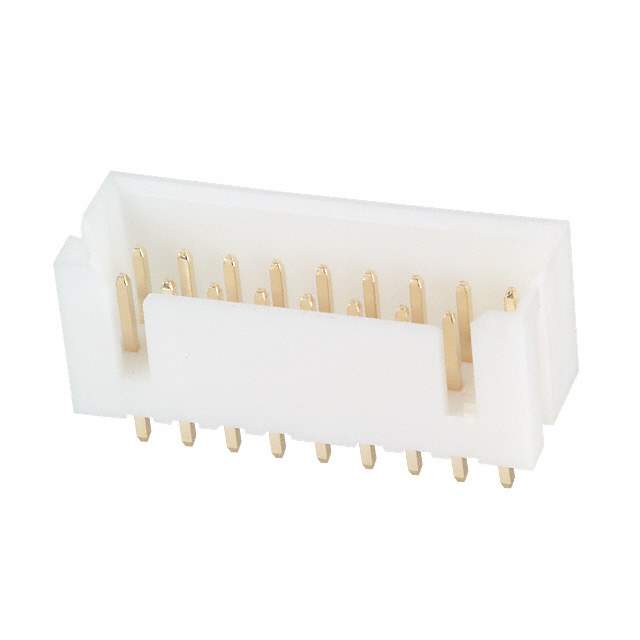

DF1B-18DP-2.5DSA(01)

Name: DF1B-18DP-2.5DSA(01)
Brand: Hirose Electric Co Ltd
SKU: 1332809
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF1B-18DP-2.5DSA(01)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 18POS 2.5MM / Connector Header Through Hole 18 position 0.098" (2.50mm)
Datasheet	DF1B-18DP-2.5DSA(01) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	18
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.417" (10.60mm)
Insulation Height	0.374" (9.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Keying Slot
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	White
Voltage Rating	250V
Mated Stacking Heights	14mm
Base Product Number	DF1B
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	DF1B-18DP-2.5DSA(01),541-0620-1-01,DF1B18DP25DSA01,H3673,DF1B-18DP-2.5DSA(01
Standard Package	100
Win Source Part Number	1332809-DF1B-18DP-2.5DSA(01)
Ultra Librarian 3D Model	Ultra Librarian DF1B-18DP-2.5DSA(01) CAD Model

Alternative Products

Description

The DF1B-18DP-2.5DSA(01) is a male pin header connector from Hirose Electric Co Ltd.

Manufacturer: Hirose Electric Co Ltd
Number of Positions: 18
Feature: Keying slot
Package: Bulk
Pitch Mating: 0.098-inch (2.50mm)
Contact Finish Mating: Gold
Application: Board to cable/wire
Temperature Range: -35°C to 85°C
RoHS Compliant: Yes
Popularity: High
