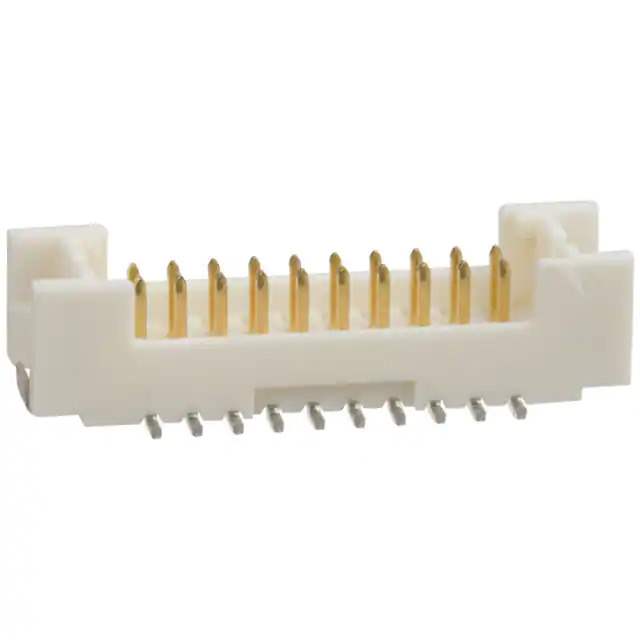

DF13E-20DP-1.25V(51) Real Image
Same model may have multiple batches, images only for reference.

DF13E-20DP-1.25V(51)

Part No DF13E-20DP-1.25V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 1.25MM / Connector Header Surface Mount 20 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Contact Finish Thickness - Post 39.4µin (1.00µm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 916957-DF13E-20DP-1.25V(51)
Ultra Librarian 3D Model Ultra Librarian DF13E-20DP-1.25V(51) CAD Model

Description

The 916957-DF13E-20DP-1.25V(51) is a male pin header connector from the DF13 series.

  • Series: DF13
  • Positions: 20
  • Rows: 2
  • Connector Type: Header
  • Contact Type: Male Pin
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Tape and Reel
  • Contact Material: Brass
  • Voltage Rating: 150V
  • Mated Stacking Heights: 5.8mm
  • Insulation Material: Polyamide (PA) Nylon
  • Style: Board to Cable/Wire
  • Mating Pitch: 0.049" (1.25mm)
  • Mating Contact Finish: Gold
  • Mating Contact Finish Thickness: 8.00μin (0.203μm)
  • Post Contact Finish: Tin-Copper
  • Post Contact Finish Thickness: 39.4μin (1.00μm)
  • Insulation Color: Beige
  • Mounting Type: Surface Mount
  • Shrouding: Shrouded, 4 Walls
  • Temperature Range: -35°C to 85°C
