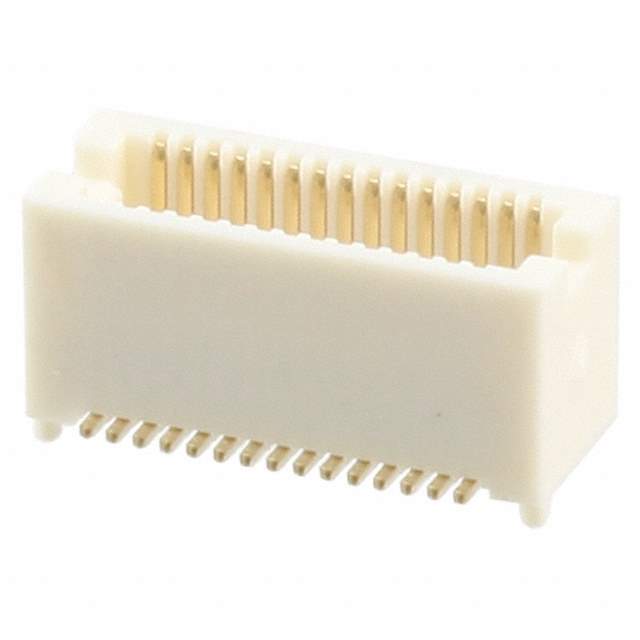

DF12D(5.0)-30DP-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12D(5.0)-30DP-0.5V(81)

Part No DF12D(5.0)-30DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 30POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Manufacturer Hirose Electric Co Ltd
Series DF12
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H11744CT, H11744DKR, 537-0480-5-81, 537-0480-5 81, *DF12D(5.0)-30DP-0.5V(81), DF12D5030DP05V81, H11744TR
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868408-DF12D(5.0)-30DP-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12D(5.0)-30DP-0.5V(81) CAD Model

Description

The Hirose Electric Co Ltd 868408-DF12D(5.0)-30DP-0.5V(81) is a surface mount connector header with 30 positions and an outer shroud contact surface mount gold.

  • Series: DF12
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1000
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
