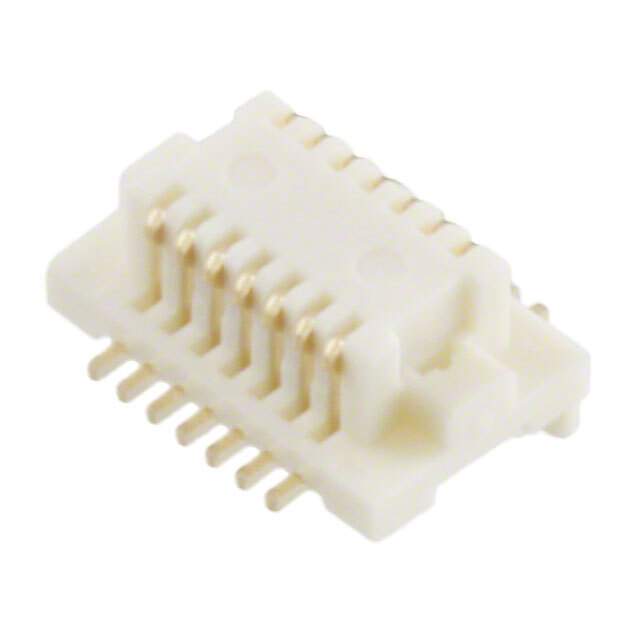

The DF12A(3.0)-14DS-0.5V(81) is a 14-position, single-row, 0.5mm pitch board-to-board connector from Hirose Electric Co Ltd's DF12 series. This connector is designed to facilitate high-density mounting and ensure reliable connections in compact electronic devices.

Applications

• Mobile phones
• Digital cameras
• Portable gaming devices
• Handheld medical equipment
• Navigation systems

Features

• Fine Pitch: 0.5mm pitch supports high-density mounting.
• Single-Row Design: Ideal for applications with limited board space.
• Board-to-Board Connection: Enables direct connection between PCBs.
• SMT Compatibility: Designed for automated surface mount assembly.
• High-Reliability Contact: Ensures stable and secure electrical connection.
• Compact Size: Small footprint for miniaturized devices.

Benefits

• Space Optimization: Enables compact designs due to its fine pitch and single-row configuration.
• Reliable Performance: Ensures a stable connection, reducing the risk of signal interruption.
• Cost-Effective Assembly: SMT compatibility allows for automated assembly processes.
• Durable: Robust construction provides long-term reliability.
• Versatile: Suitable for various small electronic devices.

Specifications

The DF12A(3.0)-14DS-0.5V(81) connector has a rated current of 0.5A and a rated voltage of 50V AC/DC. The contact resistance is a maximum of 80 mΩ, and the insulation resistance is a minimum of 100 MΩ. The operating temperature range is -30°C to +85°C. Mating height is 3.0mm. The material is a heat-resistant plastic, designed for reflow soldering.
