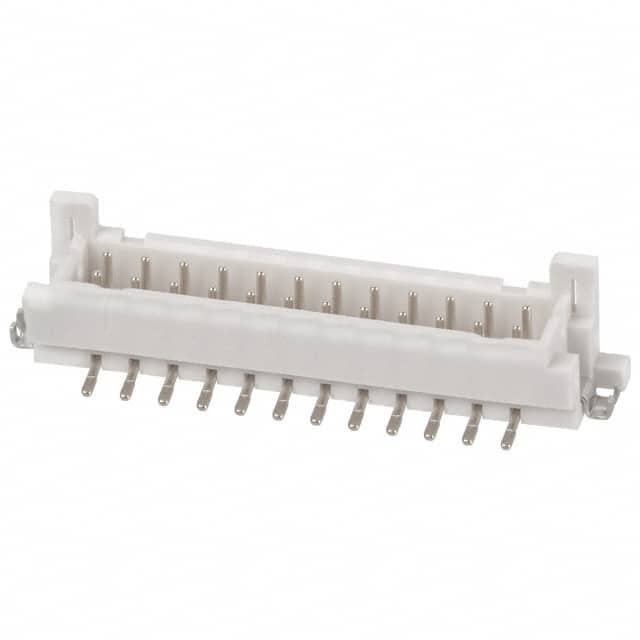

Same model may have multiple batches, images only for reference.

DF11G-24DP-2V(20)

Name: DF11G-24DP-2V(20)
Brand: Hirose Electric Co Ltd
SKU: 916922
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF11G-24DP-2V(20)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 24POS 2MM / Connector Header Surface Mount 24 position 0.079" (2.00mm)
Datasheet	DF11G-24DP-2V(20) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	24
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.283" (7.19mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	2A
Voltage Rating	250V
Mated Stacking Heights	8.2mm, 8.45mm, 9.55mm
Standard Package	15 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	916922-DF11G-24DP-2V(20)
Ultra Librarian 3D Model	Ultra Librarian DF11G-24DP-2V(20) CAD Model

Alternative Products

Description

The DF11G-24DP-2V(20) is a rectangular connector header manufactured by Hirose Electric Co Ltd.

Series: DF11
Positions: 24
Features: Board Guide and Solder Retention
Contact Type: Male Pin
Rows: 2-Row
Termination: Solder
Fastening Type: Detent Lock
Package: Tube
Standard Package: 15 pcs
Contact Material: Brass
Voltage Rating: 250V
Mated Stacking Heights: 8.2mm, 8.45mm, and 9.55mm
Flammability Rating: UL94 V-0
Connection Type: Board-to-Board or Cable
Pitch for Mating: 0.079" (2.00mm)
Contact Finish for Mating: Tin
HTSUS Code: 8536.69.4040
Product Status: Obsolete
