Same model may have multiple batches, images only for reference.

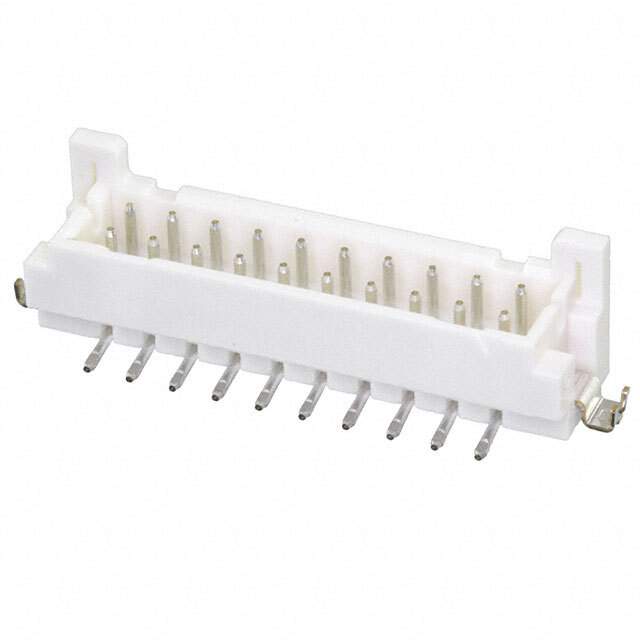

DF11CZ-20DP-2V(27) Real Image
Same model may have multiple batches, images only for reference.

DF11CZ-20DP-2V(27)

Part No DF11CZ-20DP-2V(27)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 2MM / Connector Header Surface Mount 20 position 0.079" (2.00mm)
Datasheet
DF11CZ-20DP-2V(27) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.283" (7.19mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 8.2mm, 8.45mm, 9.55mm
Base Product Number DF11C
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -DF11CZ-20DP-2V(27),DF11CZ-20DP-2V(27)-ND,*DF11CZ-20DP-2V(27)CT-ND,H124676CT,*DF11CZ-20DP-2V(27),543-2055-2-27,H124676DKR,*DF11CZ-20DP-2V(27)-ND,-DF11CZ-20DP-2V(27)CT,-DF11CZ-20DP-2V(27)-ND,*DF11CZ-20DP-2V(27)DKR-ND,H124676TR,-DF11CZ-20DP-2V(27)DKR
Standard Package 500
Win Source Part Number 1332408-DF11CZ-20DP-2V(27)
Ultra Librarian 3D Model Ultra Librarian DF11CZ-20DP-2V(27) CAD Model

Description

The Hirose Electric Co Ltd 1332408-DF11CZ-20DP-2V(27) is a connector with 20 positions and a rectangular header male pin.

  • Positions: 20
  • Connector Type: Rectangular Header Male Pin
  • Features: Pick and Place, Solder Retention, Shrouded 4 Wall
  • Pin Gender: Male
  • Pitch Mating: 0.079 inches (2.00mm)
  • Contact Finish for Mating: Tin
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Contact Finish for Post: Tin
  • Voltage Rating: 250V
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Beige
  • Application: Board to Board or Cable
