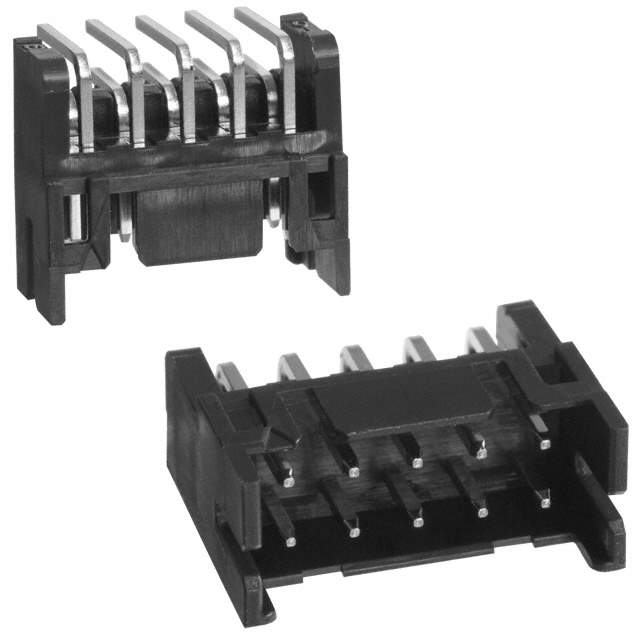

DF11-10DP-2DS(24) Real Image
Same model may have multiple batches, images only for reference.

DF11-10DP-2DS(24)

Part No DF11-10DP-2DS(24)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2MM / Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Datasheet
DF11-10DP-2DS(24) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF11
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.197" (5.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Base Product Number DF11
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337011-DF11-10DP-2DS(24)
Ultra Librarian 3D Model Ultra Librarian DF11-10DP-2DS(24) CAD Model

Description

The Hirose Electric Co Ltd DF11-10DP-2DS(24) is a male pin header connector with a pitch of 0.079" (2.00mm) and a contact finish of tin.

  • Manufacturer: Hirose Electric Co Ltd
  • Connector Type: Header
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Application: Board to Board or Cable
  • Mounting Type: Through-Hole, Right Angle
  • Standard Package: 40
  • RoHS Compliant: Yes
  • ECCN: EAR99
