Same model may have multiple batches, images only for reference.

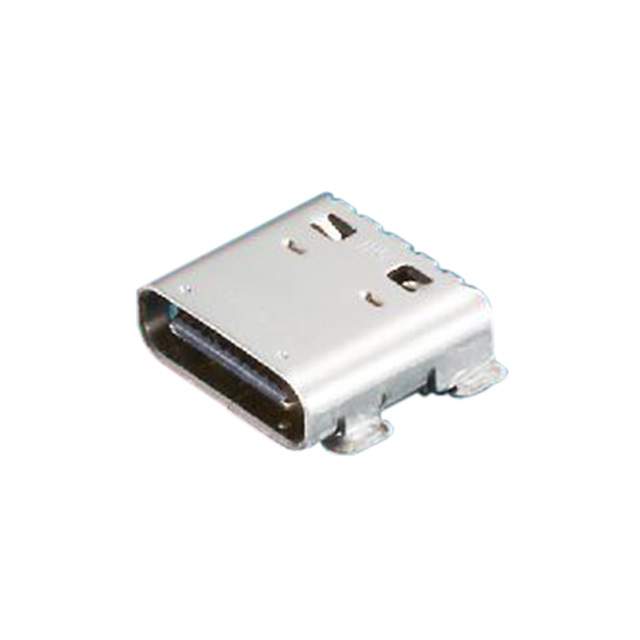

CX90B1-24P Real Image
Same model may have multiple batches, images only for reference.

CX90B1-24P

Part No CX90B1-24P
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB3.1 TYPEC 24P SMD RA
Datasheet
CX90B1-24P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Manufacturer Hirose Electric Co Ltd
Series CX
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Right Angle; Through Hole
Family Name CX90B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 480-0497-0-00, H125778TR, H125778DKR, H125778CT
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916206-CX90B1-24P
Ultra Librarian 3D Model Ultra Librarian CX90B1-24P CAD Model

Description

The CX90B1-24P is a USB-C USB Type-C USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3 from Hirose Electric Co Ltd.

  • Supply and Demand Status: Balanced
  • Win Source Part Number: 916206
  • Application: Connector
  • Mounting: Surface mount and right angle through-hole mounting
