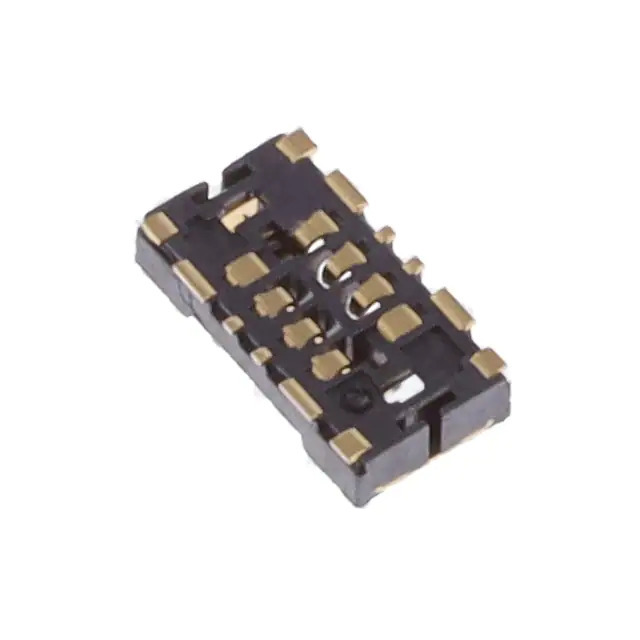

Same model may have multiple batches, images only for reference.

BM29B0.6-4DS/2-0.35V(51)

Name: BM29B0.6-4DS/2-0.35V(51)
Brand: Hirose Electric Co Ltd
SKU: 1364433
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BM29B0.6-4DS/2-0.35V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	6 (4 + 2 POWER) POSITION CONNECT / 4 (2 + 2 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	BM29B0.6-4DS/2-0.35V(51) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	BM29
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	4 (2 + 2 Power)
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	-
Contact Finish	Gold
Contact Finish Thickness	1.97µin (0.050µm)
Mated Stacking Heights	0.6mm
Height Above Board	0.024" (0.61mm)
Base Product Number	BM29B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364433-BM29B0.6-4DS/2-0.35V(51)
Ultra Librarian 3D Model	Ultra Librarian BM29B0.6-4DS/2-0.35V(51) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd BM29B0.6-4DS/2-0.35V(51) is a rectangular connector array in the BM29 series.

Manufacturer: Hirose Electric Co Ltd
Series: BM29
Connector Type: Receptacle
Number of Positions: 4 (2 + 2 power)
Number of Rows: 2
Mounting Type: Surface Mount
Packaging: Tape & Reel
Contact Finish: Gold
Contact Finish Thickness: 1.97µin (0.050µm)
Pitch: 0.014 inches (0.35mm)
Height Above Board: 0.024 inches (0.61mm)
HTSUS Code: 8536.69.4040
ECCN: EAR99
