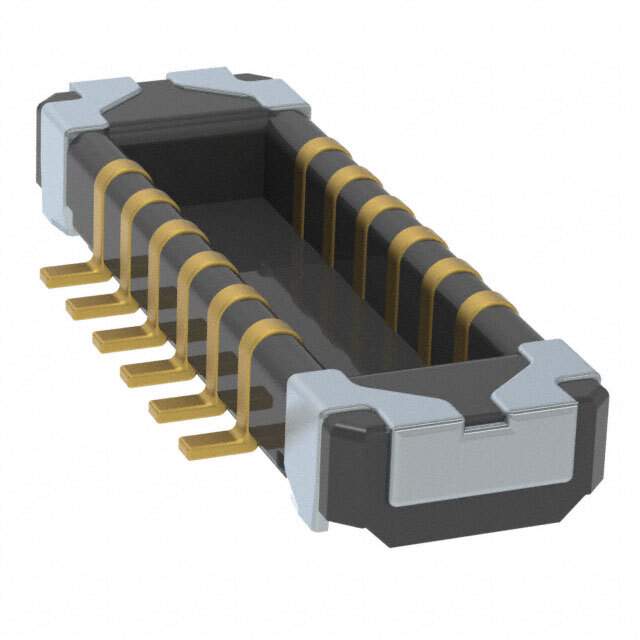

BM23FR0.6-12DP-0.35V(51) Real Image
Same model may have multiple batches, images only for reference.

BM23FR0.6-12DP-0.35V(51)

Part No BM23FR0.6-12DP-0.35V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 12POS SMD GOLD / 12 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM23FR0.6-12DP-0.35V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM23
Package Tape & Reel (TR)
Connector Type Header, Outer Shroud Contacts
Number of Positions 12
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.020" (0.50mm)
Base Product Number BM23FR0.6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 480-0364-0-51
Standard Package 10,000
Win Source Part Number 1199068-BM23FR0.6-12DP-0.35V(51)
Ultra Librarian 3D Model Ultra Librarian BM23FR0.6-12DP-0.35V(51) CAD Model

Description

The BM23FR0.6-12DP-0.35V(51) header connector from Hirose Electric Co Ltd is a rectangular connector with 12 positions loaded on a 2-row configuration.

  • Positions: 12
  • Rows: 2
  • Pitch: 0.35mm
  • Contact Finish: Gold (0.050µm)
  • Mated Stacking Height: 0.6mm
  • Height Above Board: 0.50mm
  • Connector Type: Solder Retention
  • Mounting: Surface Mount Technology
  • Voltage Rating: 50V
  • Ideal for: Board to Board Applications
