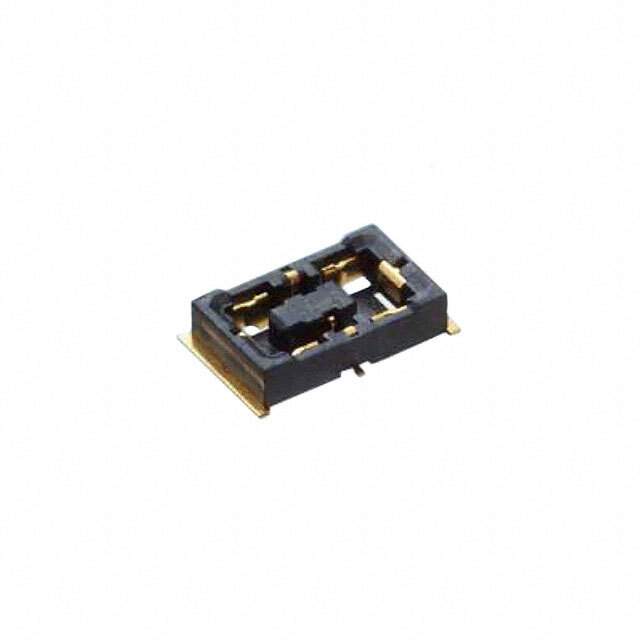

Same model may have multiple batches, images only for reference.

BM22-4S-V(53)

Name: BM22-4S-V(53)
Brand: Hirose Electric Co Ltd
SKU: 438399
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BM22-4S-V(53)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RECEPT 4POS SMD
Datasheet	BM22-4S-V(53) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Active
Connector Type	Receptacle
Contact Type	Center Strip Contact
Style	Board to FPC
Number of Positions	4 (2 + 2 Power)
Number of Positions Loaded	All
Number of Rows	2
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.97μin (0.05μm)
Insulation Color	Black
Insulation Height	0.035" (0.90mm)
Temperature Range - Operating	-35°C to 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	0.9mm
Features	Pick and Place
Current Rating	0.3A Signal, 4A Power
Voltage Rating	50V
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Finish Thickness - Post	Flash
Win Source Part Number	1023708-BM22-4S-V(53)
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian BM22-4S-V(53) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd BM22-4S-V(53) connector is a receptacle type connector with a friction lock fastening mechanism.

Positions: 4
Contacts: 2 power and 2 signal
Connection Type: Board to FPC
Voltage Rating: 50V
Current Rating (Signal): 0.3A
Current Rating (Power): 4A
Insulation Material: Liquid crystal polymer (LCP), UL94 V-0
Contact Finish: Gold
Finish Thickness (Mating): 1.97μin (0.05μm)
Finish Thickness (Post): Flash
Mounting Type: Surface Mount (SMD) (SMT)
Mated Stacking Height: 0.9mm
Packaging: Reel
Package Quantity: 1k pcs
