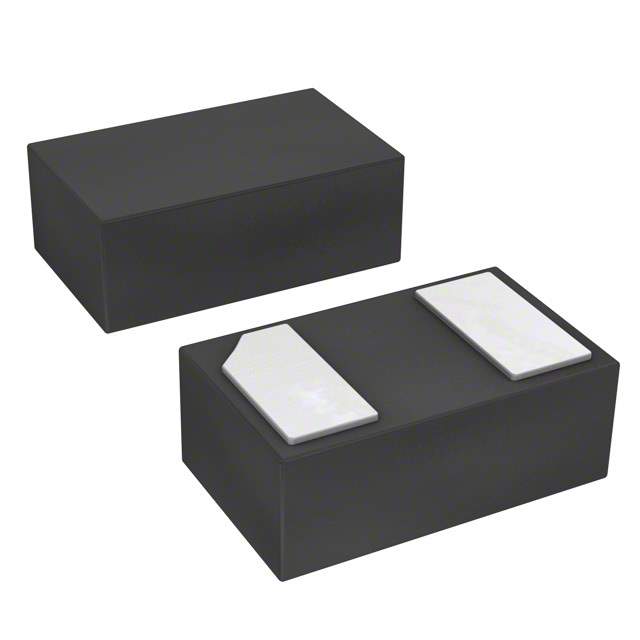

AOZ8131DI-05L Real Image
Same model may have multiple batches, images only for reference.

AOZ8131DI-05L

Part No AOZ8131DI-05L
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 22VC DFN1006
Datasheet
AOZ8131DI-05L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 22V
Peak Pulse Current(Ippm) 4A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 1.25pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 2-DFN (1x0.6)
Win Source Part Number 095585-AOZ8131DI-05L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Portable Devices, Communications & Networking, Audio, Imaging, Video & Vision, Safety
Ultra Librarian 3D Model Ultra Librarian AOZ8131DI-05L CAD Model

Description

Product Description

The AOZ8131DI-05L is an advanced transient voltage suppression diode meticulously engineered to protect complex circuit designs. Its durability and precision ensure optimal performance in safeguarding sensitive electronics.

Features and Benefits

  • High surge capability
  • Low leakage current
  • Wide operating temperature range
  • Compact, lead-free packaging

Applications

  • Industrial control systems
  • Home appliances
  • Automotive electronics
  • Protection of RS-485 interfaces

Designed for high-surge capability and minimal leakage, the AOZ8131DI-05L is ideal for use in environments where electronic stability is of utmost importance.
