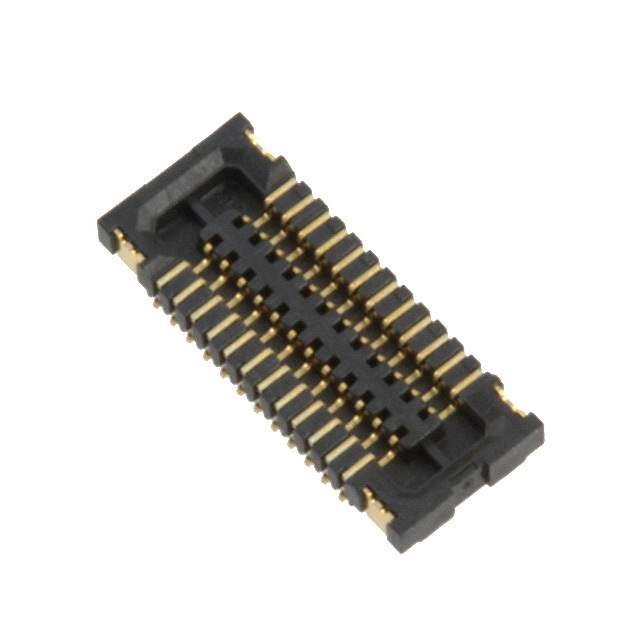

BM14C(0.8)-24DS-0.4V(51) Real Image
Same model may have multiple batches, images only for reference.

BM14C(0.8)-24DS-0.4V(51)

Part No BM14C(0.8)-24DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 24POS SMD GOLD / 24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
BM14C(0.8)-24DS-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM14
Package Tape & Reel (TR)
Connector Type Receptacle, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.8mm
Height Above Board 0.031" (0.80mm)
Base Product Number BM14C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 684-8018-2-51
Standard Package 8,000
Win Source Part Number 1141478-BM14C(0.8)-24DS-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian BM14C(0.8)-24DS-0.4V(51) CAD Model

Description

The BM14C(0.8)-24DS-0.4V(51) from Hirose Electric Co Ltd is a receptacle connector with center strip contacts.

  • Pitch: 0.016" (0.40mm)
  • Features: solder retention
  • Positions: 24
  • Rows: 2
  • Contact Finish Thickness: 2.00µin (0.051µm) gold
  • Height Above Board: 0.031" (0.80mm)
  • Packaging: tape & reel (TR)
  • Mated Stacking Height: 0.8mm
  • Mounting Type: SMD (SMT)
  • ECCN: EAR99
  • Series: BM14
  • Standard Package: 8,000
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
