BM14B(0.8)-24DP-0.4V(51) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

BM14B(0.8)-24DP-0.4V(51)

Part No BM14B(0.8)-24DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors

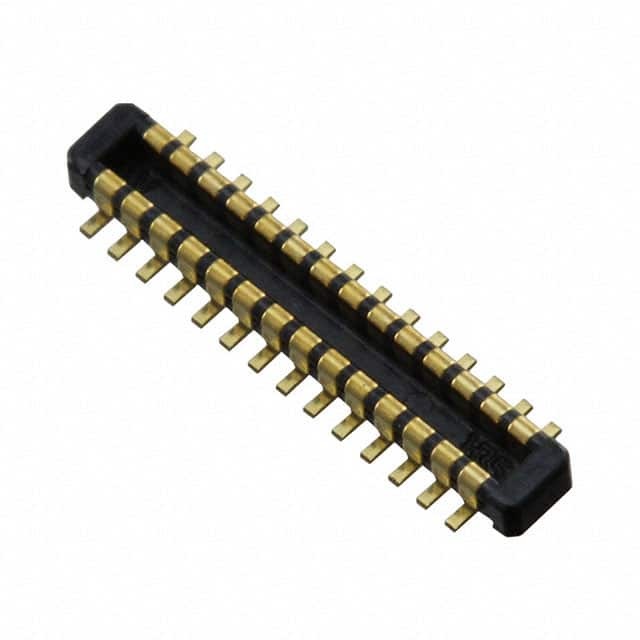

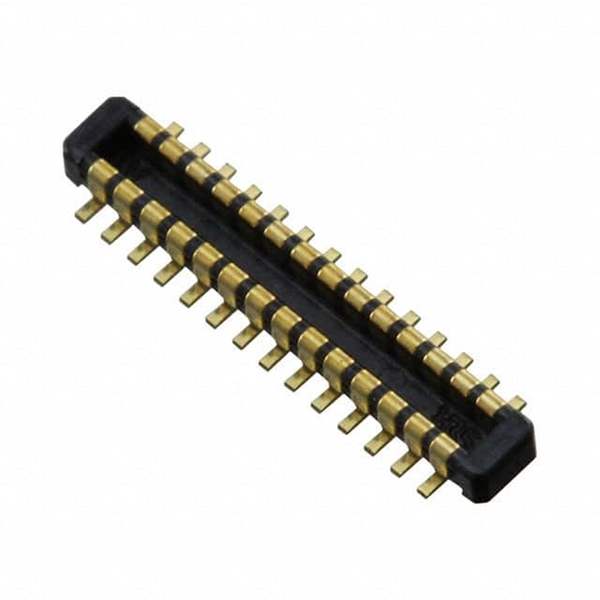

Description CONN HDR 24POS SMD GOLD / 24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM14B(0.8)-24DP-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM14
Package Tape & Reel (TR)
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.8mm
Height Above Board 0.024" (0.61mm)
Base Product Number BM14B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 684-8012-6-51
Standard Package 8,000
Win Source Part Number 1049460-BM14B(0.8)-24DP-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian BM14B(0.8)-24DP-0.4V(51) CAD Model

Description

The BM14 series is a range of rectangular connectors used for arrays, edge type, and mezzanine (board to board).

  • Series: BM14
  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Connector Type: Header
  • Contacts: Outer Shroud Contacts
  • Positions: 24
  • Pitch: 0.016" (0.40mm)
  • Termination Feature: Solder Retention
  • Contact Finish: Gold
  • Height Above Board: 0.024" (0.61mm)
  • Mated Stacking Height: 0.8mm
  • Mounting Type: Surface Mount, Right-Angle
  • Material Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
