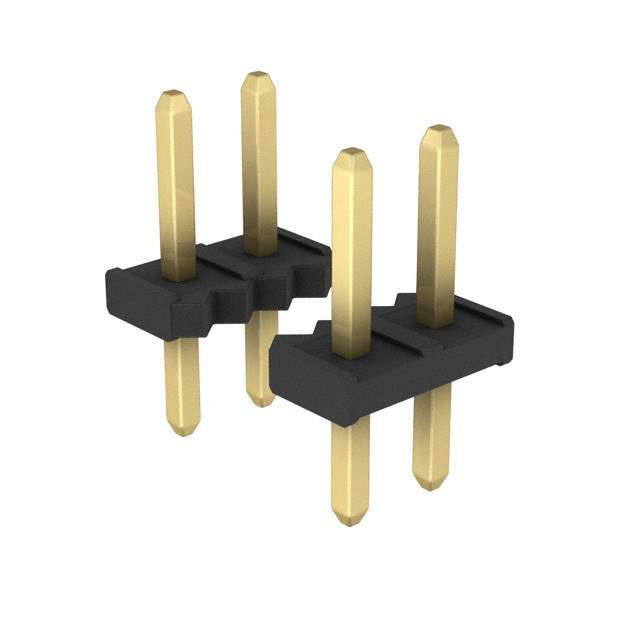

Same model may have multiple batches, images only for reference.

A3C-6P-2DSA

Name: A3C-6P-2DSA
Brand: Hirose Electric Co Ltd
SKU: 1339460
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	A3C-6P-2DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2MM / Connector Header Through Hole 6 position 0.079" (2.00mm)
Datasheet	A3C-6P-2DSA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	A3
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.102" (2.60mm)
Overall Contact Length	0.276" (7.00mm)
Insulation Height	0.035" (0.90mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	200V
Mated Stacking Heights	5.1mm, 7.9mm
Contact Finish Thickness - Post	Flash
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339460-A3C-6P-2DSA
Ultra Librarian 3D Model	Ultra Librarian A3C-6P-2DSA CAD Model

Alternative Products

Description

The A3C-6P-2DSA is a male pin header connector from Hirose Electric Co Ltd.

Number of Positions Loaded: 6
Number of Rows: 2
Mounting Type: Through Hole
Pitch: 0.079 inches (2.00mm)
Contact Finish: Gold
Voltage Rating: 200V
Current Rating: 1A
Operating Temperature: -55°C to 85°C
RoHS: Compliant
Series: A3
Fastening Type: Push-Pull
