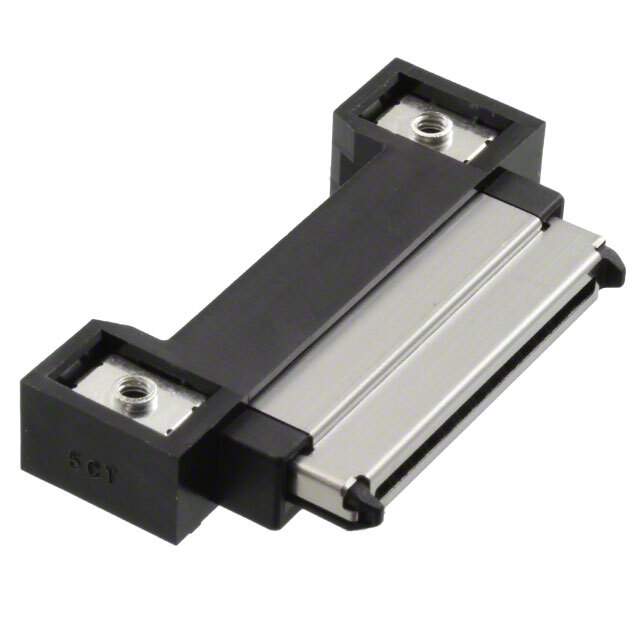

3560-24P-PG(61) Real Image
Same model may have multiple batches, images only for reference.

3560-24P-PG(61)

Part No 3560-24P-PG(61)
Manufacturer Hirose Electric Co Ltd
Catalog Pluggable Connectors
Description CONN MULTI-PURP PLUG 24P R/A SMD / 24 Position Multi-Purpose Plug Connector Solder Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr Hirose Electric Co Ltd
Series 3500
Package Tape & Reel
Product Status Last Time Buy
Connector Style Plug
Connector Type Multi-Purpose
Number of Positions 24
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number 3560
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *3560-24P-PG(61)DKR-ND,H124670DKR,H124670CT,*3560-24P-PG(61),-3560-24P-PG(61)CT,Q3498573,*3560-24P-PG(61)CT-ND,-3560-24P-PG(61)DKR,-3560-24P-PG(61)-ND,235-0023-6-61,*3560-24P-PG(61)-ND,H124670TR,3560-24P-PG(61)-ND,-3560-24P-PG(61)
Standard Package 300
Win Source Part Number 1006035-3560-24P-PG(61)
Ultra Librarian 3D Model Ultra Librarian 3560-24P-PG(61) CAD Model

Description

The 3500 series from Hirose Electric Co Ltd is a 24 position multi-purpose pluggable connector with a solder termination and gold contact finish.

  • Manufacturer: Hirose Electric Co Ltd
  • Series: 3500
  • Positions: 24
  • Connector Type: Pluggable Connector
  • Termination: Solder
  • Contact Finish: Gold
  • Part Number: 3560-24P-PG(61)
  • Family Name: 3500
  • Operating Temperature: -55°C to 105°C
  • Supply and Demand Status: Last Time Buy
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Package: Tape & Reel
  • Package Quantity: 300
  • Other Part Numbers: H124670DKR, H124670CT, Q3498573, H124670TR, and 3560-24P-PG(61)-ND
