Same model may have multiple batches, images only for reference.

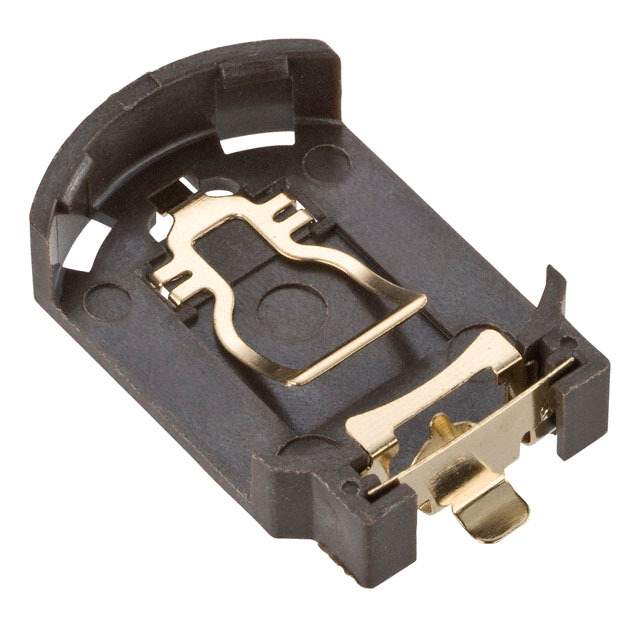

S8421-45R Real Image
Same model may have multiple batches, images only for reference.

S8421-45R

Part No S8421-45R
Manufacturer Harwin Inc.
Catalog Battery Holders, Clips, Contacts
Description BATTERY HOLDER COIN 20MM SMD
Datasheet
S8421-45R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Battery Products
Estimated Pruduction Lead Time 11 Weeks
Features Battery Holder (Open) Coin, 20.0mm 1 Cell SMD (SMT) Tab
Manufacturer Harwin Inc.
Series S8421R
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting PCB, Surface Mount
Family Name S8421-4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number S842145R, 952-1737-1, 952-1737-2, 952-1737-6
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 932820-S8421-45R
Ultra Librarian 3D Model Ultra Librarian S8421-45R CAD Model

Description

The Harwin Inc. S8421-45R is a battery holder with an open coin for a 1 cell SMD (SMT) tab.

  • Package: reel - TR
  • Mounting: surface mount
  • Temperature Range: -40°C to 105°C
  • Series: S8421R
  • RoHS Compliant: Yes
  • REACH: unaffected
  • Estimated Production Lead Time: 11 weeks
