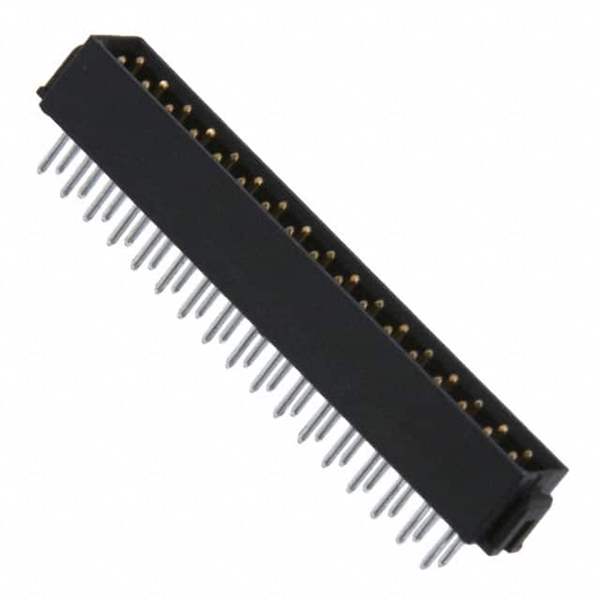

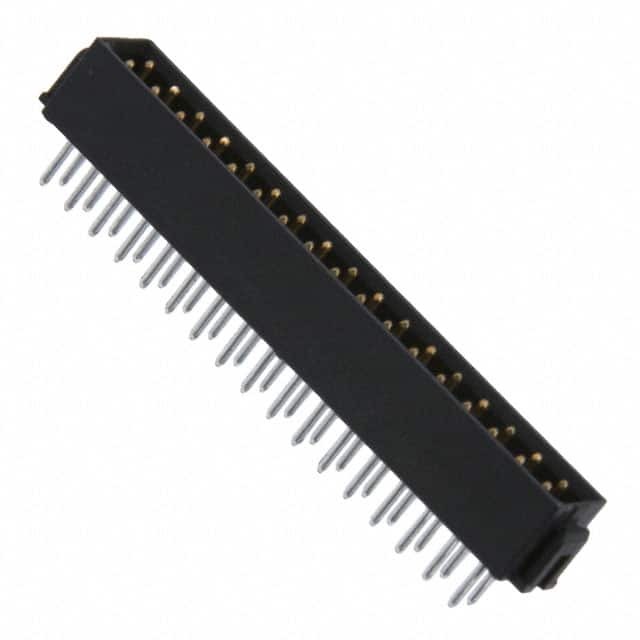

M80-8543442

Name: M80-8543442
Brand: Harwin Inc.
SKU: 924992
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M80-8543442
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 34POS 2MM / Connector Header Through Hole 34 position 0.079" (2.00mm)
Datasheet	M80-8543442 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate L-Tek
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.219" (5.56mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.23mm, 7.85mm, 10.2mm, 13.51mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-854
Standard Package	6 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	924992-M80-8543442
Ultra Librarian 3D Model	Ultra Librarian M80-8543442 CAD Model

Description

The 924992-M80-8543442 is a male pin header connector from the Datamate L-Tek series.

Series: Datamate L-Tek
Positions: 34
Connection Type: Board-to-board or cable
Material: Phosphor bronze
Plating: Gold
Voltage Rating: 800V
Current Rating: 2.2A
Pitch: 0.079" (2.00mm)
Termination Method: Solder
Package: Tube
Pieces: 6
Flammability Rating: UL94 V-0
