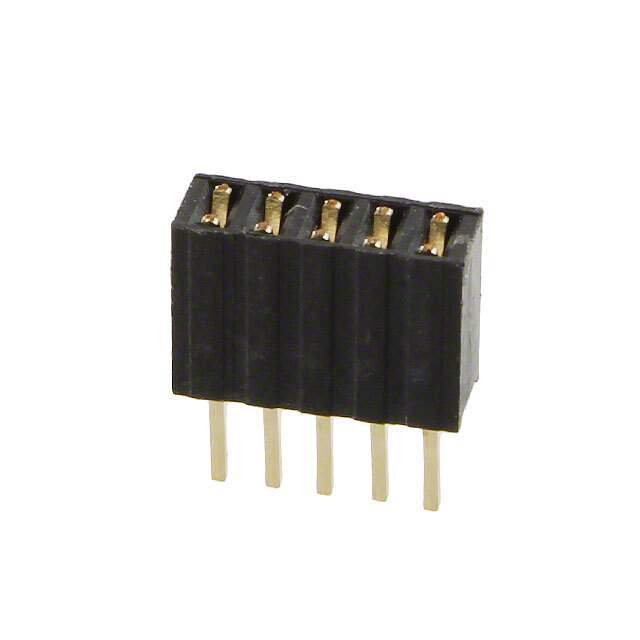

Same model may have multiple batches, images only for reference.

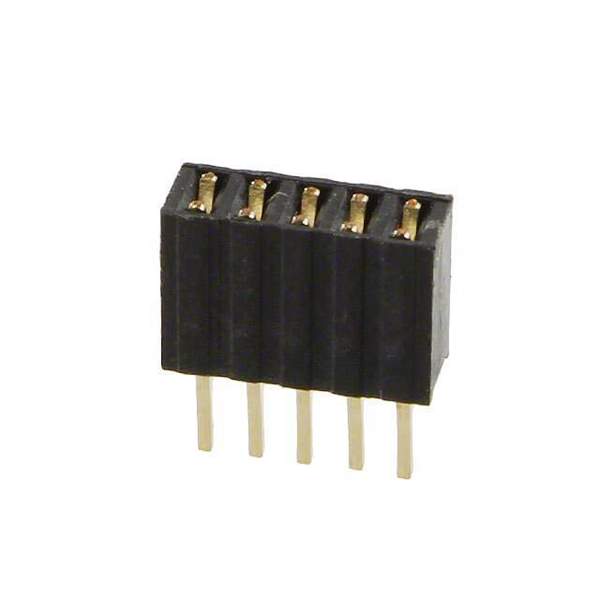

M52-5000545 Harwin Inc.
Same model may have multiple batches, images only for reference.

M52-5000545

Part No M52-5000545
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 5POS 0.05 GOLD PCB
Datasheet
M52-5000545 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206711-M52-5000545
Manufacturer Harwin Inc.
Category Connectors, Interconnects -Rectangular Connectors- Headers, Receptacles, Female Sockets
Series Archer M52
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Pitch - Mating 0.050" (1.27mm)
Insulation Height 0.181" (4.60mm)
Ultra Librarian 3D Model Ultra Librarian M52-5000545 CAD Model

Description

A range of 1.27mm pitch connectors, jumper sockets and IDC cable connectors, comprising vertical surface mount, vertical and horizontal throughboard, plugs and sockets of varying heights. Board-to-board spacing and configuration is obtained by the selection of an appropriate height plug and socket.
