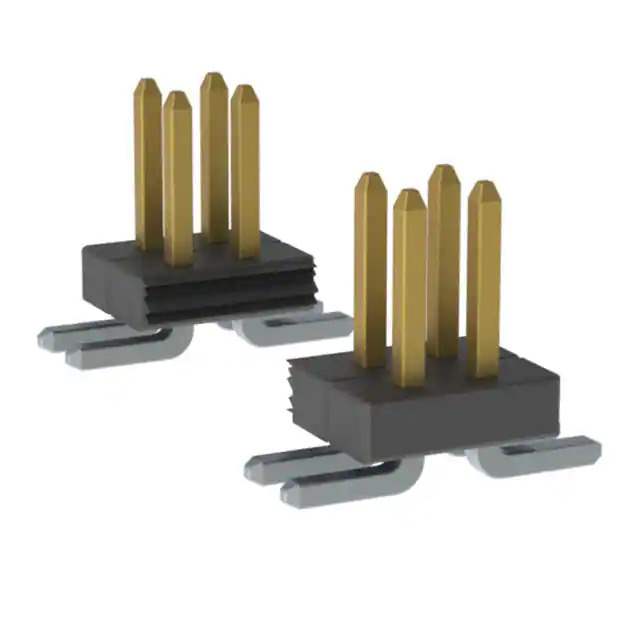

M50-3600542

Name: M50-3600542
Brand: Harwin Inc.
SKU: 849072
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M50-3600542
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet	M50-3600542 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Archer M50
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.118" (3.00mm)
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Mated Stacking Heights	3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm
Contact Finish Thickness - Post	98.4µin (2.50µm)
Base Product Number	M50-360
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849072-M50-3600542
Ultra Librarian 3D Model	Ultra Librarian M50-3600542 CAD Model

Description

The Archer M50 series male pin header is a versatile connector designed for use in various electronic applications.

Positions: 10
Rows: 2
Fastening Type: Push-Pull
Material: Copper Alloy
Stacking Heights: 3.9mm to 7mm
Temperature Range: -40°C to 105°C
Insulation Material: Thermoplastic
