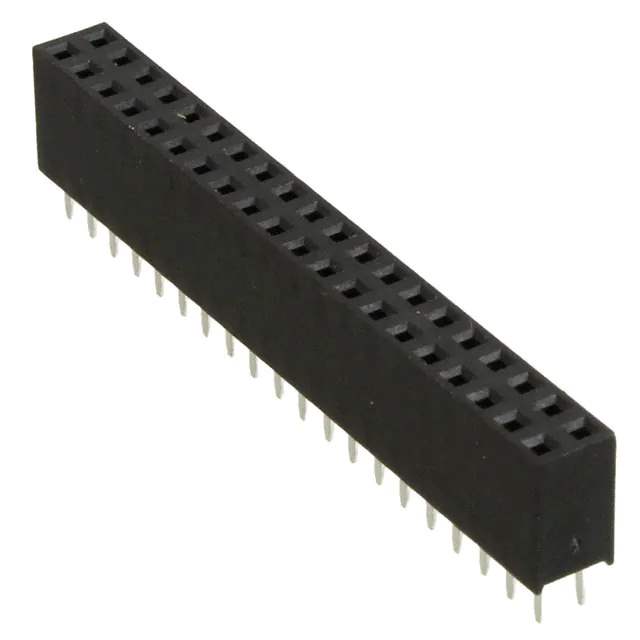

M20-7832046

Name: M20-7832046
Brand: Harwin Inc.
SKU: 847903
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M20-7832046
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 40POS 0.1 TIN PCB
Datasheet	M20-7832046 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	M20
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	11.04mm, 12.63mm
Current Rating (Amps)	3A
Voltage Rating	1000V
Applications	General Purpose, Industrial, Telecommunications
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	M20-783
Standard Package	11 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	847903-M20-7832046
Ultra Librarian 3D Model	Ultra Librarian M20-7832046 CAD Model

Description

The M20-7832046 is a rectangular connector designed for headers, receptacles, and female sockets from Harwin Inc.

Series: M20.
Positions: 40.
Fastening Type: Push-pull.
Termination: Solder.
Voltage Rating: Up to 1000V.
Applications: General purpose, industrial, and telecommunications.
Contact Material: Phosphor bronze.
Insulation Material: Polyamide (PA6T).
Package: Tube.
Quantity: 11 pieces.
Moisture Sensitivity Level: 1.
HTSUS Code: 8536.69.4040.
