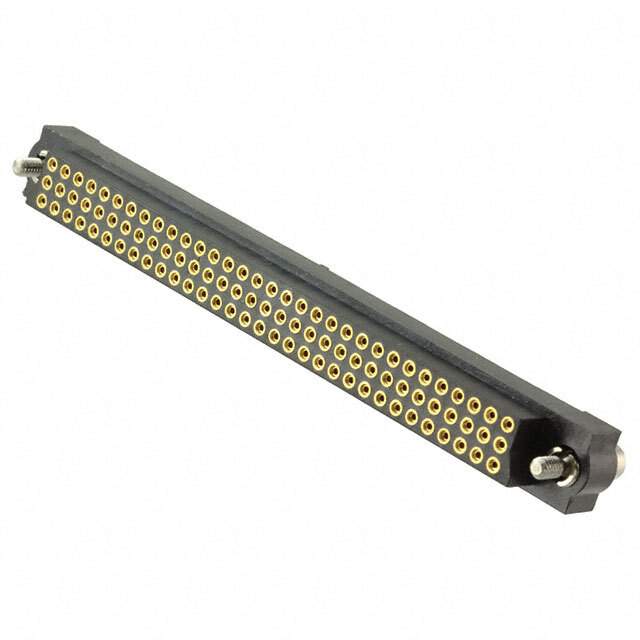

Same model may have multiple batches, images only for reference.

M83-LFT1F2N96-0000-000

Name: M83-LFT1F2N96-0000-000
Brand: Harwin Inc.
SKU: 1350207
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M83-LFT1F2N96-0000-000
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 96POS 0.079 GOLD PCB / 96 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	M83-LFT1F2N96-0000-000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	96
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	3
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Screw Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12.0µin (0.30µm)
Insulation Color	Black
Insulation Height	0.330" (8.38mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	10.65mm
Features	Jackscrews, Mating Flange, Mounting Flange
Voltage Rating	120V
Applications	Automotive, General Purpose, Military
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	M83-LFT1F
Standard Package	15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350207-M83-LFT1F2N96-0000-000
Ultra Librarian 3D Model	Ultra Librarian M83-LFT1F2N96-0000-000 CAD Model

Alternative Products

Description

The Harwin Inc. 1350207-M83-LFT1F2N96-0000-000 is a Datamate J-Tek series connector from.

Series: Datamate J-Tek
Connector Type: Receptacle
Positions: 96
Rows: 3
Fastening Type: Screw Lock
Loaded Positions: All
Voltage Rating: 120V
Mated Stacking Height: 10.65mm
Contact Material: Beryllium Copper
Contact Finish: Gold
Contact Finish Thickness (Mating): 12.0µin (0.30µm)
Contact Finish Thickness (Post): 10.0µin (0.25µm)
Pitch (Mating): 0.079" (2.00mm)
Mounting Type: Through Hole
Operating Temperature: -55°C to 125°C
REACH: Unaffected
