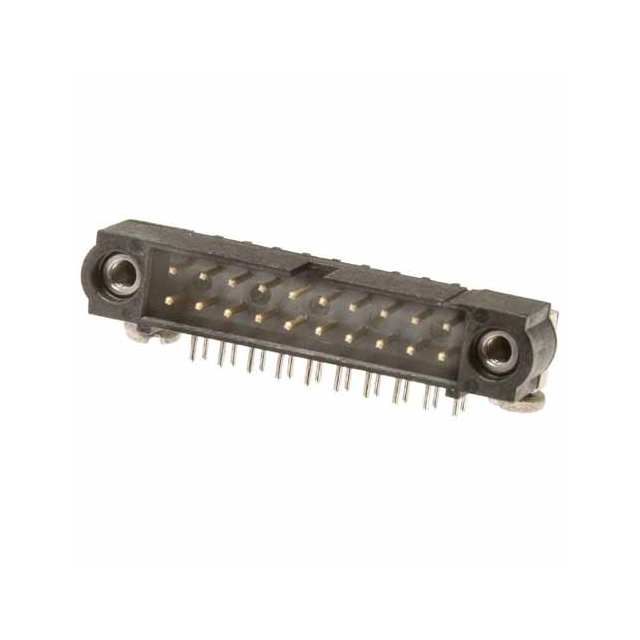

M80-5401642

Name: M80-5401642
Brand: Harwin Inc.
SKU: 1349462
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M80-5401642
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	DATAMATE J-TEK DIL MALE HORIZONT / Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Datasheet	M80-5401642 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.222" (5.65mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800VAC/DC
Contact Finish Thickness - Post	12.0µin (0.30µm)
Base Product Number	M80-540
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349462-M80-5401642
Ultra Librarian 3D Model	Ultra Librarian M80-5401642 CAD Model

Description

The Harwin Inc. Datamate J-Tek series is a male pin header connector with 16 positions.

Manufacturer: Harwin Inc.
Number of Positions: 16
Pitch: 0.079" (2.00mm)
Voltage Rating: 800VAC/DC
Current Rating: 2.2A
Shrouding: Shrouded - 4 Wall
Row Spacing: 0.100" (2.54mm)
Mounting Type: Through Hole, Right Angle
Termination: Solder
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Operating Temperature: -55°C to 125°C
