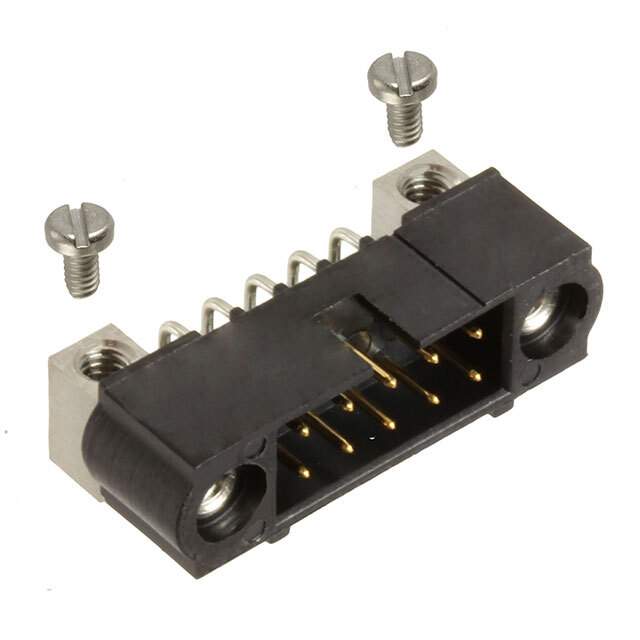

M80-5401042

Name: M80-5401042
Brand: Harwin Inc.
SKU: 1352233
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-5401042
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2MM / Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Datasheet	M80-5401042 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.218" (5.55mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-540
Standard Package	13
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1352233-M80-5401042
Ultra Librarian 3D Model	Ultra Librarian M80-5401042 CAD Model

Description

The M80-5401042 is a rectangular connector header with 10 male pins. Harwin Datamate J-Tek manufactures the connector.

Connector Type: Header
Number of Pins: 10
Gender: Male
Pitch: 0.079”
Mated Stacking Height: 0
Voltage Rating: 800V
Current Rating: 2.2A
Series: Datamate J-Tek
Application: Board-to-Board or Cable
Shrouded: 4-Wall
Material: Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range: -55°C to 125°C
Standard Package: 13
Package: Tube
