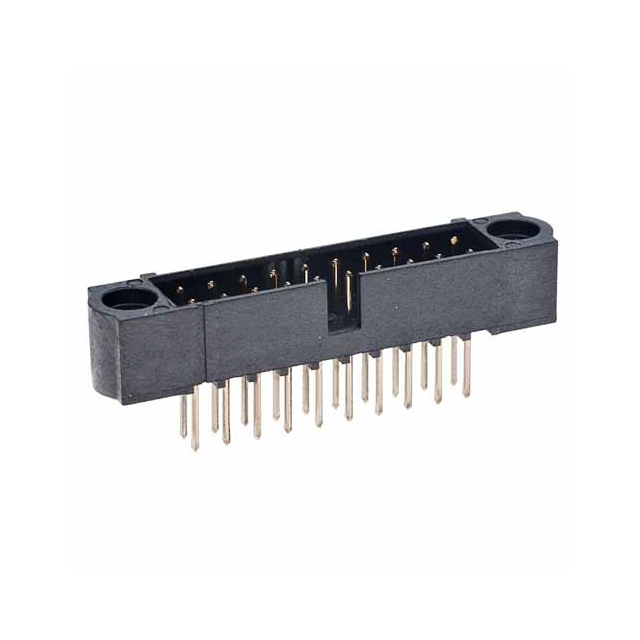

M80-5211042

Name: M80-5211042
Brand: Harwin Inc.
SKU: 1340735
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-5211042
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Datasheet	M80-5211042 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Post	0.173" (4.40mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Keying Slot, Mating Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	120V
Mated Stacking Heights	7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-521
Standard Package	13
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340735-M80-5211042
Ultra Librarian 3D Model	Ultra Librarian M80-5211042 CAD Model

Alternative Products

Description

The Datamate J-Tek series male pin header connector with keying slot and mating flange is a through-hole solder type connector with 10 positions and 2 rows.

Contact Material: Phosphor Bronze
Contact Finish: Gold
Contact Finish Thickness: 29.5µin
Contact Length Post: 0.173”
Insulation Height: 0.220”
Shrouding: Shrouded with 4 Walls
Row Spacing: 0.079”
Mating Pitch: 0.079”
Contact Finish Post: Tin
Contact Finish Thickness Post: 118.1µin
Current Rating: 2.2A
Operating Temperature: -55°C to 125°C
Voltage Rating: 120V
Packaging: Tube
Flammability Rating: UL94 V-0
