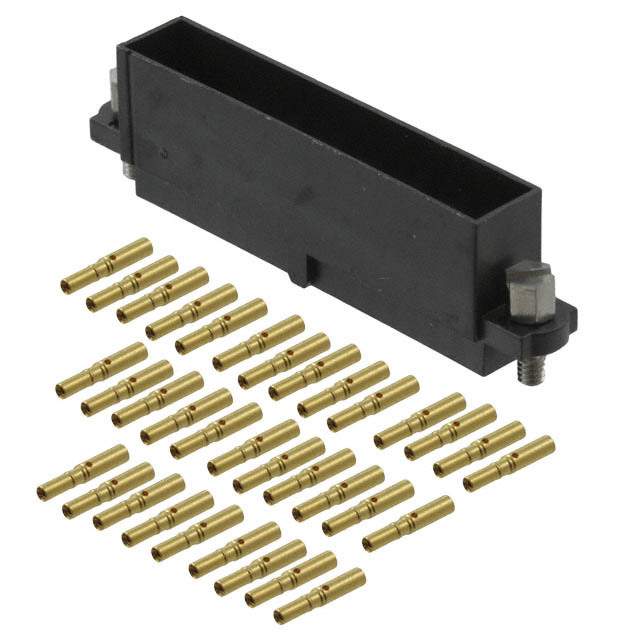

M80-4663405 Real Image
Same model may have multiple batches, images only for reference.

M80-4663405

Part No M80-4663405
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 34POS CRIMP 24-28AWG / 34 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
Datasheet
M80-4663405 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr Harwin Inc.
Series Datamate J-Tek
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 34
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Fastening Type Screw Lock
Cable Termination Crimp
Wire Type Discrete
Wire Gauge 24-28 AWG
Features Jackscrews, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Color Black
Base Product Number M80-466
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1339196-M80-4663405
Ultra Librarian 3D Model Ultra Librarian M80-4663405 CAD Model

Description

The M80-4663405 from Harwin Inc. is a high-quality connector that is designed to provide reliable performance in a variety of applications.

  • Connector Type: Rectangular
  • Mounting Type: Free Hanging, Panel Mount
  • Positions: 34
  • Pitch: 0.079" (2.00mm)
  • Color: Black
  • Features: Jackscrews, Polarizing Key
  • Contact Type: Female Socket
  • Wire Gauge: 24 to 28 AWG
