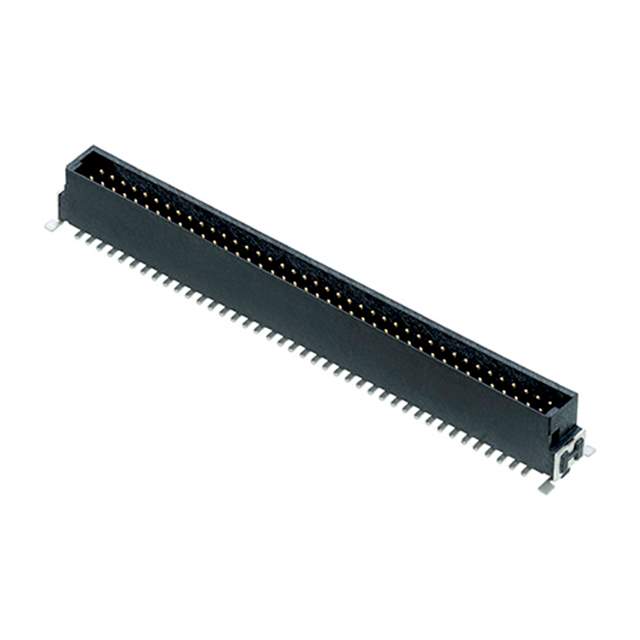

M55-7008042R

Name: M55-7008042R
Brand: Harwin Inc.
SKU: 1339049
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M55-7008042R
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 80POS 1.27MM / Connector Header Surface Mount 80 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Archer Kontrol
Package	Tape & Reel (TR) Cut Tape (CT)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	80
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Mating	0.157" (4.00mm)
Insulation Height	0.266" (6.76mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.00µin (0.025µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1.2A
Mated Stacking Heights	8mm, 10.8mm, 15.4mm
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Industrial
Base Product Number	M55-700
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339049-M55-7008042R
Ultra Librarian 3D Model	Ultra Librarian M55-7008042R CAD Model

Alternative Products

Description

The Archer Kontrol series 80-position male pin header is an ideal connector for automotive, general purpose, and industrial applications from Harwin Inc.

Features: Board Guide, Pick and Place, Solder Retention, Latch Lock
Fastening Type: Latch Lock
Header Connector Type: Header
Contact Type: Male Pin
Contact Material: Phosphor Bronze
Shrouded: Shrouded-4 Wall
Mounting: Surface Mountable
Insulation Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold
Temperature Range: -55°C ~ 125°C
Package: Tape & Reel
Standard Package: 500
