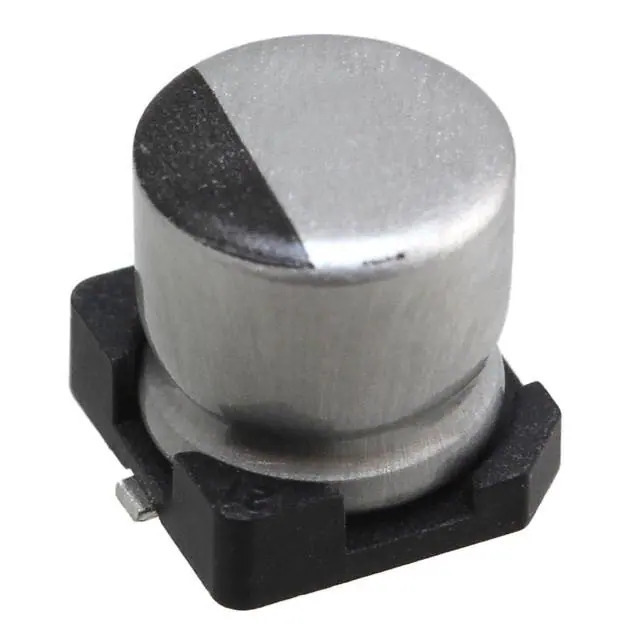

UWR1A101MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWR1A101MCL1GB

Part No UWR1A101MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 10V SMD / 100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWR
Package Tape & Reel
Product Status Last Time Buy
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 54 mA @ 120 Hz
Ripple Current @ High Frequency 81 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1356054-UWR1A101MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWR1A101MCL1GB CAD Model

Description

The UWR1A101MCL1GB is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Operating Temperature: -40°C ~ 85°C
  • Capacitance: 100µF
  • Voltage - Rated: 10V
  • Tolerance: ±20%
  • Size / Dimension: 0.197" Dia (5.00mm)
  • Height - Seated (Max): 0.217" (5.50mm)
  • Polarization: Polar
  • Ripple Current @ Low Frequency: 54mA @ 120Hz
  • Ripple Current @ High Frequency: 81mA @ 10kHz
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
