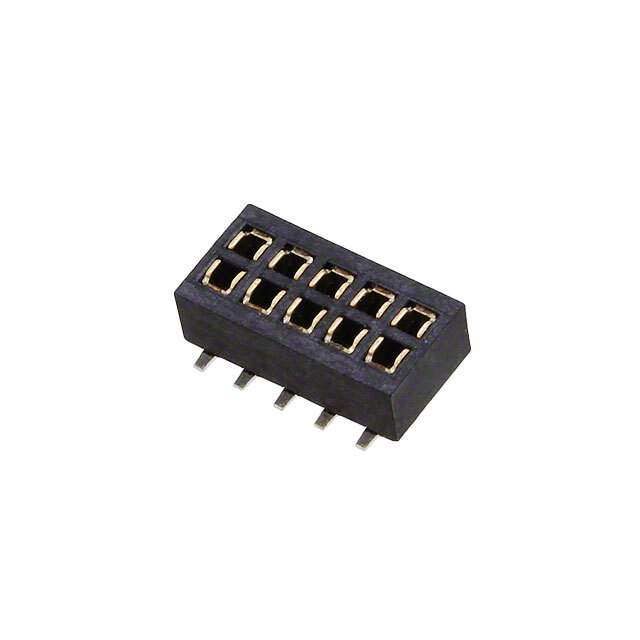

M50-3150542

Name: M50-3150542
Brand: Harwin Inc.
SKU: 1332895
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M50-3150542
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.05 GOLD SMD / 10 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet	M50-3150542 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Receptacle, Bottom or Top Entry
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.087" (2.20mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm
Features	Board Guide
Current Rating (Amps)	1A
Applications	General Purpose, Medical, Telecommunications
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	M50-315
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	952-1371-5,M503150542
Standard Package	90
Win Source Part Number	1332895-M50-3150542
Ultra Librarian 3D Model	Ultra Librarian M50-3150542 CAD Model

Alternative Products

Description

The M50-3150542 is a rectangular connector by Harwin Inc.

Type: Receptacle, Bottom or Top Entry
Contact Type: Female Socket
Positions Loaded: 10
Rows: 2
Termination Style: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Mated Stacking Heights: 3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm
Pitch-Mating: 0.050” (1.27mm)
Row Spacing-Mating: 0.050” (1.27mm)
Insulation Material: Polyamide (PA6T), Nylon 6T
Insulation Color: Black
Standard Package: 90
Mounting Type: Surface-Mounted
Temperature Range: -40°C to 105°C
