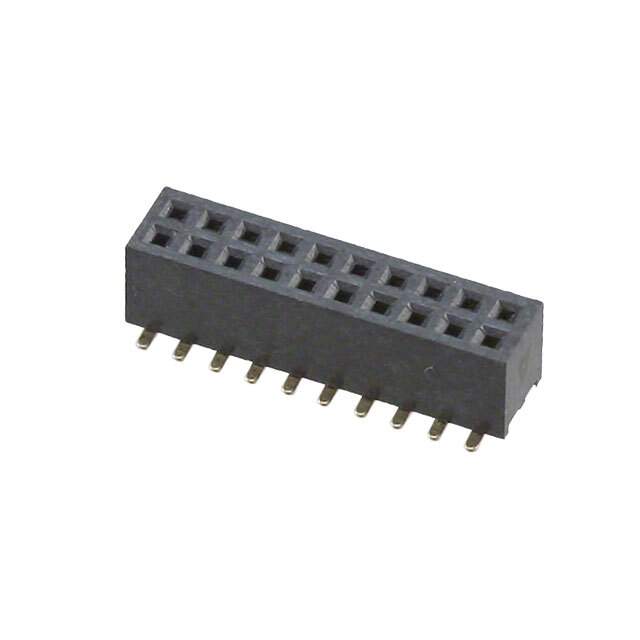

M50-3121045

Name: M50-3121045
Brand: Harwin Inc.
SKU: 1332773
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M50-3121045
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS 0.05 GOLD SMD / 20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet	M50-3121045 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.142" (3.60mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	5.5mm, 6.18mm
Current Rating (Amps)	1A
Applications	General Purpose, Medical, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	M50-312
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	M503121045,952-1711
Standard Package	46
Win Source Part Number	1332773-M50-3121045
Ultra Librarian 3D Model	Ultra Librarian M50-3121045 CAD Model

Description

The Harwin Inc. 1332773-M50-3121045 is a receptacle-type connector with a push-pull fastening mechanism.

Connector Type: Receptacle
Fastening: Push-Pull
Positions Loaded: 20
Contact Type: Female Socket
Rows: 2
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold
Contact Finish (Post): Flash
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Pitch: 0.050 inches (1.27mm)
Mounting: Surface Mount
Applications: General-Purpose, Medical, and Telecommunications
Temperature Range: -40°C to 105°C
Flammability Rating: UL94 V-0
RoHS3 Compliant: Yes
ECCN: EAR99
